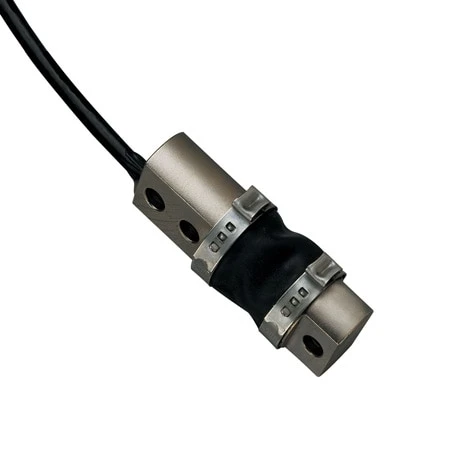

Low Profile, Bending Beam Load Cell
Original price was: $302.00.$99.99Current price is: $99.99.
- Provides Maximum Protection Against Adverse Loads
- Sealed for Washdown Areas
- 0.25% Interchangability
- Calibration Certificate with 59 kOhm Shunt Cal Data Provided
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The model LCDA is a versatile bending beam load cell for tension and compression loading. Compact and low in profile, the LCDA is ruggedly constructed of high quality alloy steel to provide maximum durability in industrial applications. Each unit is nickel plated for corrosion resistance and sealed to resist moisture.
| Weight Capacity | 500 lbf |
|---|---|
| Measurement Units | lbf |
| Force direction | Tension/Compression |
| Linearity | ±0.03% |
| Electrical Output (nominal) | 3 mV/V |
| OD | 1.12" |
| Height | 1" |
| Length | 2.81" |
| Connection Type | Cable |
| Cable Length | 20 ft |
