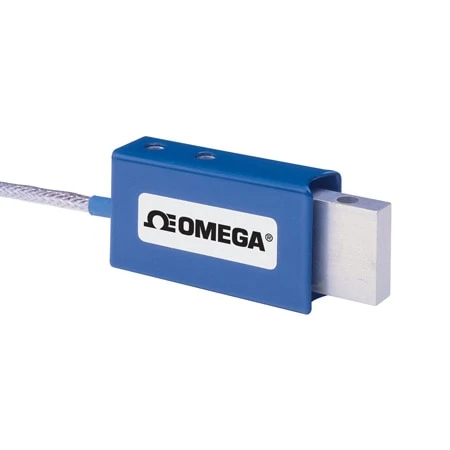

Low Profile, Mini Beam Load Cell For Low Capacities

Original price was: $381.41.Current price is: $95.99.

Very High Precision
Low Profile – 1″ Height
High Repeatability
100% Creep Tested

Weight Capacity

Height

Width

Clear

SKU: LCEB-10 Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Model LCEB load cells offer exceptional accuracy in compression in controlled environments (in general anywhere a digital readout is used). Their high accuracy, small size, low creep, and excellent temperature compensation make the LCEB series an excellent choice for applications such as force testing, thrust measurements, check weighing, and scale applications.

Weight Capacity	10 lbf, 100 lbf, 150 lbf, 25 lbf, 250 lbf, 5 lbf, 50 lbf, 75 lbf
Height	1.01", 1.02"
Width	0.5", 0.75"
Measurement Units	lbf
Force direction	Compression
Linearity	±0.03%
Electrical Output (nominal)	3 mV/V
Length	2.38"
Connection Type	Cable
Cable Length	5 ft
