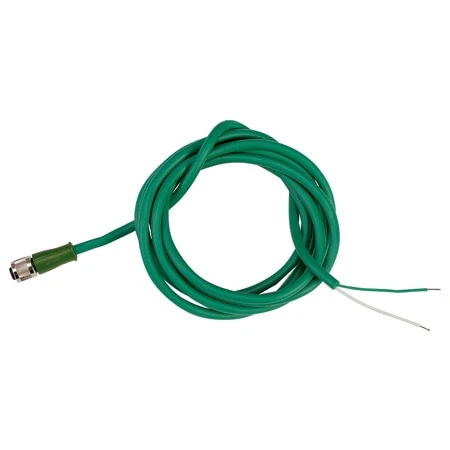

M12 & M8 Cable, 2 Wire, Thermocouple Compensated

Original price was: $66.11.Current price is: $46.28.

Available in M8 and M12 Constructions
Cables Include Female Connectors One End and Stripped Leads on the Other
Cables Have Thermocouple Compensated Wires
Cables Have Silicone Insulation and Jacket and Molded Nylon Connectors with Metal Attachment Nuts

Use With Sensor Type

Connector Side A

Connector Side B

Cable Length

Conductor Insulation Color

Clear

SKU: M12C-SIL-KI-S-F-10-DUAL Categories: Extension Wires and Cables, Temperature Wire and Cable Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

See our new M12 cables which include M12 thermocouple connector pins and socket materials, please see the M12CM Series

Omega’s line of M8 and M12 over molded extension cables are great for connecting the following M8 and M12 enabled thermocouple sensors to your process or measurement instrument:

M12JSS or M12KIN Thermocouples with M12 Connectors and Metal Housings

M12MJSS or M12MKIN Thermocouples with M12 Over Molded Connectors

M8M Thermocouples with M8 Over Molded Connectors

These cables include M8 and M12 connectors containing uncompensated connector sockets and thermocouple extension grade cables in Type K and J calibrations. Colors include both ANSI and IEC color codes (see table below). These cables are sold with stripped leads standard for easy connection directly to your measurement or control instrument. If you need a connector for attaching the cable to your instrumentation, Omega offers the following thermocouple connectors which connect to a wide variety of hand held and other instruments:

SMPW-CC Miniature Connectors

OSTW-CC Standard Sized Connectors

Specifications:

Cable: #24AWG stranded thermocouple extension grade conductors with silicone rubber insulation and overjacket.

Connector: Nylon overmolded connectors with gold plated brass contacts and nickel plated brass connecting nut.

Temperature Limit: 180°C for the silicone extension cable and 90°C for the molded connector.

Color Codes: Available in both ANSI and IEC color codes (see table below).

Thermocouple Type	Outer Jacket	Positive Conductor	Negative Conductor	Over Molded Connector Material
Type K IEC	Green	Green	White	Green
Type J IEC	Black	Black	White	Black
Type K ANSI	Yellow	Yellow	Red	Yellow
Type J ANSI	Black	White	Red	Black

Use With Sensor Type	Dual Thermocouple Type K, Thermocouple Type JI, Thermocouple Type J, Thermocouple Type KI, Thermocouple Type K
Connector Side A	M12 Straight Female Connector, M8 Straight Female Connector
Connector Side B	Stripped leads, SMPW-CC Male connector, SMPW Male connector
Cable Length	10 m, 15 m, 1.5 m, 20 m, 3 m, 5 m, 21 m, 30 m, 50 m, 8 m, 9 m
Conductor Insulation Color	Positive Green, Negative Green, Jacket White, Positive White, Negative Red, Jacket Brown, Positive Black, Negative White, Jacket Black, Positive Green, Negative White, Jacket Green, Positive Yellow, Negative Red, Jacket Yellow
Conductor Insulation	Silicone Insulation and Jacket
