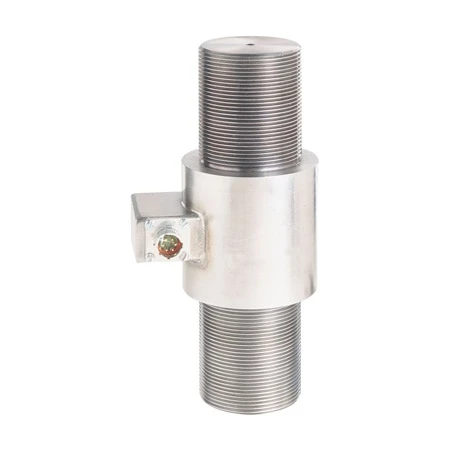

Male/Male Thread Connection, Inline Tension Link Load Cell

Original price was: $359.00.Current price is: $99.99.

Male to Male Thread Connection
5 Point NIST Traceable Calibration with
59 kOhm Shunt Cal Data
All Stainless Steel Construction

Weight Capacity

Height

Connection Type

Cable Length

Clear

SKU: LC702-20K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OMEGA’s LC702 Series Tension Links have a 6 ft (2 m) cable, and the LC712 Series have an integral connector. Both series are all stainless steel high capacity in-line tension load cells, for applications including cables on cranes, support rods in architectural designs, engine test beds, and industrial weighing applications.

SPECIFICATIONS
Output: 2 mV/V ±0.25 % FSO
Excitation: 10 Vdc (15V max)
Linearity: ±0.10% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 121°C (-30 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C (±0.005% FSO/°F)
   Span: ±0.009% FSO/°C (±0.005% FSO/°F)
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 ?
Construction: Stainless steel
Electrical:
   LC702: 1.8 m (6′) 4-conductor cable
   LC712: DT02H-10-6P (or equiv.)
Protection Class: IP67
LC712 Mating Connector: PT06F10-6S, sold separately

Weight Capacity	20,000 lbf, 100,000 lbf, 10,000 lbf, 150,000 lbf, 200,000 lbf, 300,000 lbf, 30,000 lbf, 50,000 lbf, 5,000 lbf
OD	3", 4.1", 5.56"
Height	6.5", 7.88", 5.5", 10.25", 12.75"
Connection Type	Cable, MIL-26482-I 10-6P
Cable Length	6 ft, Not applicable
Measurement Units	lbf
Force direction	Tension
Linearity	±0.1%
Electrical Output (nominal)	2 mV/V
