Metric, Intrinsically Safe, Low Profile Load Cells

Original price was: $342.00.Current price is: $96.99.

FM Intrinsically Safe Rating Standard
4 to 20 mA Output
5-Point NIST Traceable Calibration Included
0.25% Interchangeability

SKU: LCM412-7.5K5BC2IS Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

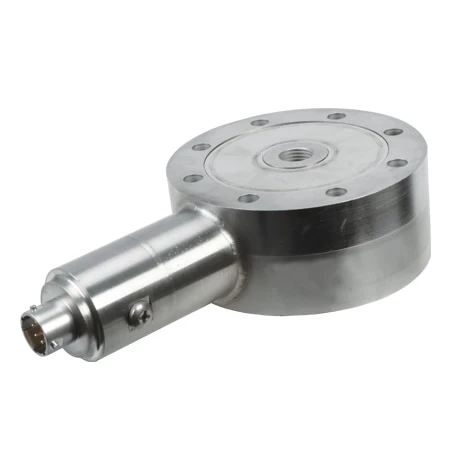

The LCM412-IS Series intrinsically safe load cells are FM rated intrinsically safe for use in hazardous locations. They are available with 5 different electrical terminations. Three connector options and 2 cable options, one of which is a submersible waterproof cable. Standard models have an amplified 4 to 20 mA output for uni-directional applications and a 4-12-20 mA output for bi-directional applications.

Recognized and respected across the globe, FM Approvals certification assures customers a product or service that has been objectively tested and conforms to the highest national and international standards. Please refer to FM Approvals for downloadable copies of FM Approvals Certificate of Compliance and Installation Control Drawings.

The LCM412-IS is also available in standard configurations, with ranges from 50 lb to 750,000 lb and standard threads. Please see LC412_LCM412-IS LC412-IS for complete details, or contact our Pressure department for more information.

Weight Capacity	7,500 kgf
Measurement Units	kgf
Force direction	Compression
Linearity	±0.1%
Electrical Output (nominal)	4-12-20 mA
Through hole (ID)/ Threaded hole dimension	M24 x 2
Connection Type	M12
Cable Length	Not applicable
Feature	Not Applicable
