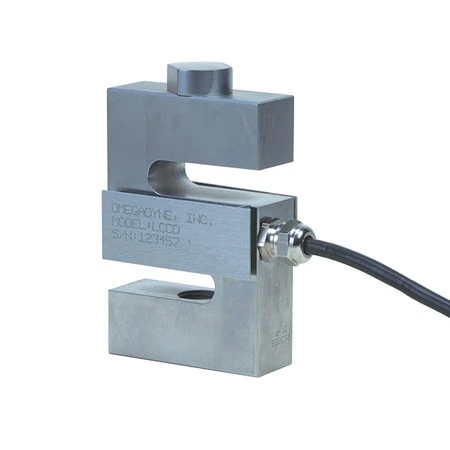

Metric, IP67 Environmentally Protected S-Beam Load Cells

Original price was: $328.00.Current price is: $99.99.

Environmentally Protected to IP67
All Stainless Steel for Industrial Environments
5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided
Tension Calibration Standard

Weight Capacity

Height

Width

Length

Clear

SKU: LCMCD-2K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The LCMCD is also available in standard configurations, with 0-25 to 0-20,000 lb ranges and standard threads. Please see the LCCD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc maximum)
Output: 3.0 mV/V ±0.25%
Linearity: 0.03% FS
Hysteresis: 0.02% FS
Repeatability: 0.01% FS
Zero Balance: 1% FS
Creep in 20 min: 0.03% FS
Operating Temperature: -18 to 66°C (0 to 150°F)
Compensated Temperature: -18 to 66°C (0 to 150°F)
Thermal Effects:
Zero: 0.0027% FS/°C
Span: 0.0015% rdg/°C
Maximum Load: Safe, 150%; ultimate, 300%
Bridge Resistance: 350 ? nominal
Construction: 17-4 PH stainless steel
Cable: 6 m (20′) 4-conductor shielded 22-gage wire

Weight Capacity	2,000 kgf, 50 kgf
Height	4.3", 2.5"
Width	1.3", 0.8"
Length	3", 2"
Measurement Units	kgf
Force direction	Tension/Compression
Linearity	±0.03%
Electrical Output (nominal)	3 mV/V
Connection Type	Cable
Cable Length	20 ft
