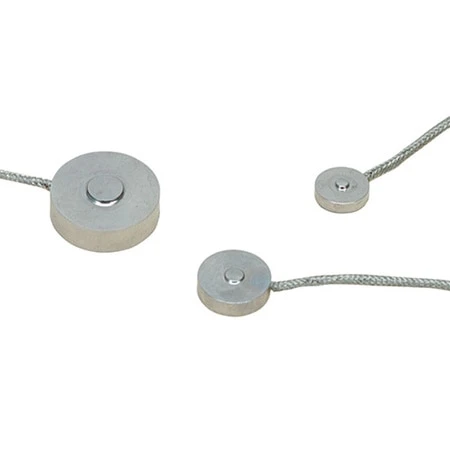

Metric, Subminiature, Button Compression Load Cell

Original price was: $300.00.Current price is: $98.99.

Miniature Size
All Stainless Steel
5 Point NIST Traceable Calibration with 59 kOhm Shunt Cal Data Provided

Weight Capacity

Height

Cable Length

Clear

SKU: LCMKD-1KN Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Small in size but not in performance, OMEGA’s LCMKD Series compression load cells are designed to measure load ranges from 10 to 10,000 Newtons. Rugged all stainless steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board which is included in the cable. These units are designed to be mounted on a smooth, flat surface .

The LCMKD is also available in standard configurations, with ranges from 0-2.2 to 0-1,000 lb. Please see the LCKD in related items below for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 5 Vdc, 7 Vdc max
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.25% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.018% of FSO/°C
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 ? min
Full Scale Deflection: 0.025 to 0.075 mm
Electrical Connection: 1.5 m (5 ft) 4-conductor insulated cable with temperature compensation board
Weight: <14 g (<0.5 oz)

Weight Capacity	1,000 N, 100 N, 10 N, 200 N, 20 N, 2,000 N, 500 N, 50 N, 5,000 N
OD	0.5", 0.38", 0.75"
Height	0.15", .12", 0.25"
Cable Length	5 ft, Miniature
Measurement Units	N
Force direction	Compression
Linearity	±0.25%
Electrical Output (nominal)	2 mV/V
Connection Type	Cable
