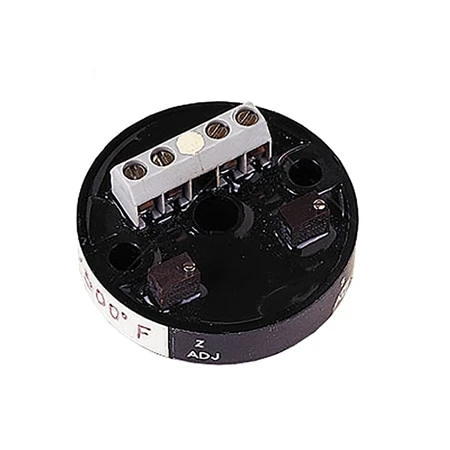

Miniature Head Mount Temperature Transmitters

Original price was: $217.09.Current price is: $99.99.

Please see model TX12 for a product with similar features at a lower price.
Ultra-Low Profile Design -Only 3 /4 ” High (Including Terminal Strip)
4-20 mA Output
Â±0.1% FS Accuracy
Non-Isolated
Mounts in Protection Head

Input Type

Input Class

Input Ranges

Additional Feature

Clear

SKU: TX94-2 Categories: Head Mount Signal Conditioners, Signal Conditioners Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Models TX93 TX94 and TX95 transmitters can eliminate long runs of costly field wiring in a variety of applications. A stable 4 to 20 mA output signal is provided proportional to the transmitters specific input type and calibrated temperature range (see Range Code Table below). Adjustability of ±25% for zero and span is provided to facilitate some rangeability.

The transmitted signal eliminates noise pickup voltage drops multiple cold junction errors and requires only a twisted pair of copper wire for loop connections. TX93 TX94 and TX95 are ultra-low profile transmitters at an economical price.

Input Type	RTD, TC (K), TC (E), TC (J), TC (T), mV, V
Input Class	Temperature, Bridge, strain, mV, Process
Input Ranges	-18 to 93°C, -18 to 399°C, -18 to 149°C, -40 to 49°C, -18 to 260°C, -18 to 538°C, -40°C to 49°C, 0 to 60 mV dc, 0 to 10 Vdc
Additional Feature	Not Applicable, 6" Probe
Output Type	mA
Output Class	Process
Supply Voltage Type	Loop
Isolation	None
Programability	Trim Pot
