Miniature IR Infrared Sensor Transmitter -18 To 538°C
Original price was: $359.24.$99.99Current price is: $99.99.
- OS137A model has adjustable alarm setpoint and output
- Emissivity for OS137A is adjustable and OS136A is fixed at 0.95
- Sensor Housing for OS137A is rated NEMA 4, IP65
- Sensor Housing for OS136A is rated NEMA 4, IP66
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

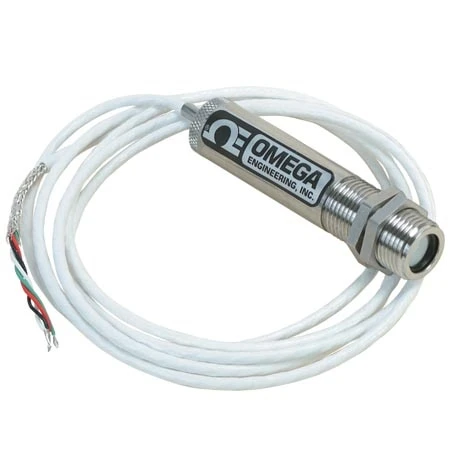

The Omega OS130A-Series offers a low cost, high-performance infrared (IR) sensor/transmitter in a 316 stainless steel housing. These IR sensors are ideal for hard-to-reach areas, confined spaces, or harsh environments. The 6 different output options provide simple interfacing directly to meters, controllers, data loggers, recorders, computer boards, and PLC’s. The units come standard with 2 hex nuts, 1.8 m (6′) shielded cable for power and output connections, and an operator’s manual.
The OS137A models feature adjustable emissivity 0.5 to 1, field of view 10 to 1, and adjustable alarm set points and voltage output to trigger external relays. The stainless steel housing makes this sensor durable and long lasting and the OS137A models have a NEMA IP65 rating.
The OS136A models have a NEMA IP66 rating and remain robust within many different environments. These models have an optical field of view of 6 to 1 with a fixed emissivity of 0.95.
| Process Temprature Range | -18°C (0°F) to 202°C (400°F), 149°C (300°F) to 538°C (1000°F), 0°C (32°F) to 100°C (212°F), -18°C (0°F) to 260°C (500°F), -18°C (0°F) to 538°C (1000°F) |
|---|---|
| Field of View | 61, 101, 10:1 |
| Accuracy @ Ambient | ±3% rdg or 4.4°C (8°F), ±3% rdg or 5.5°C (10°F) |
| Laser Output | Optional, No |
| Emissivity | 0.95, 0.5-1 |
| Output (changed from Analog Output) | Thermocouple Type K, 4 to 20 mA, 10 mV/°C, 10 mV/°F, 0 to 5 Vdc, 0 to 10 Vdc |
| Supply Voltage | 12 to 24 Vdc, 12 to 24 Vdc @ 50 mA |
| Spectral Response | 5 to 14 microns, 5.5 to 14 microns |
| Response Time | 150 msec, 0 to 63% of final value, 150 ms |
| Intrisically Safe | No, 0 to 5 Vdc |
| Operating Temprature range | 0°C (32°F) to 70°C (158°F) |
| Built in Display | No |
| Cable Length | 6 ft |
