NEMA 3R/4 Free-Standing Outdoor Enclosure
Original price was: $348.00.$98.99Current price is: $98.99.
- 0.104′ Carbon Steel
- Concealed Hinge
- Removable and Interchangeable Doors
- Flange Trough Collar Around All Sides of Door Opening
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

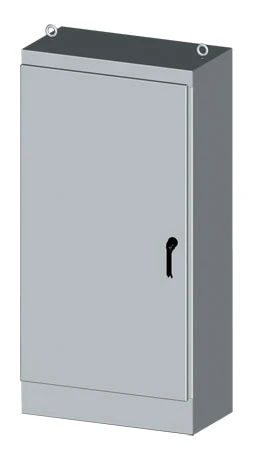

The SCE-FS Series electrical enclosure is designed to house a variety of electrical and electronic controls, equipment and instruments. Provisions for optional surface mounting or rack mounting of almost any type of equipment. Provides protection from dust, dirt, water and oil. The enclosures are extra deep for weatherproof applications requiring more interior space.
Finish
These electrical cabinets are white powder coating inside and ANSI-61 recoatable gray finish outside over phosphatized surfaces. Stainless steel enclosures are Type 304 stainless with #4 brushed finish. Optional panels are powder coated white.
Industry Standard IS3
NEMA Type 3R, 12 & 13
UL Listed Type 3R & 12
CSA TYpe 3R & 12
IEC 60529 IP 55 Industry Standard IS4
NEMA Type 3R, 4, 12 & 13
UL Listed Type 3R, 4 & 12
CSA TYpe 3R, 4 & 12
IEC 60529 IP 66
To maintain NEMA Type 3R rating, a drip shield is recommended.
| Size | 72 in H x 30 in W x 18 in D, 60 in H x 36 in W x 24 in D, 60 in H x 24 in W x 18 in D, 60 in H x 24 in W, 60 in H x 36 in W, 72 in H x 36 in W x 18 in D, 72 in H x 36 in W x 30 in D, 72 in H x 36 in W x 36 in D, 72 in H x 24 in W x 18 in D, 72 in H x 24 in W x 24 in D, 72 in H x 30 in W x 24 in D, 72 in H x 36 in W x 24 in D, 90 in H x 36 in W x 20 in D, 90 in H x 36 in W x 24 in D, 90 in H x 36 in W x 36 in D, 90 in H x 24 in W x 20 in D, 90 in H x 24 in W, Not Applicable, 90 in H x 36 in W |
|---|---|
| Works With | Electrical and Electronic Controls, Instruments and Components, Full sub-Panel for 60 x 24, Half sub-Panel for 60 x 24, Full sub-Panel for 60 x 36, Half sub-panel for 60 x 36, Full sub-Panel for 90 x 24, Half sub-panel for 90 x 24, Full sub-panel for 90 x 36, Half sub-panel for 90 x 36, Half panel for 90 x 36 |
| Enclosure Material | Carbon Steel |
| Enclosure Color | Inside White Powder Coated, Outside Recoatable Gray Finish |
