Sale!

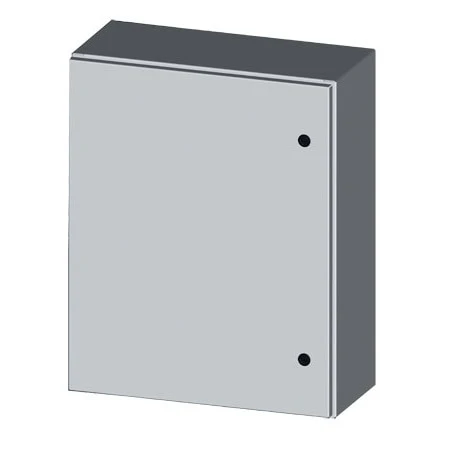

NEMA 4 Single Door Outdoor Electrical Enclosures & Cabinets.

Original price was: $63.22.Current price is: $44.25.

0.075′ Carbon Steel
Seams Continuously Welded and Ground Smooth
Flange Trough Collar Around All Sides of Door Opening
Oil-Resistant Gasket

Closure Type

Works With

Features

Clear

SKU: SCE-ELMFK6 Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

If your application requires Flush Wall Mounting, see our flush mount kits in the accessories table, one kit required for the width dimension and one for the height.

Application
The SCE-4EL series electrical enclosures and cabinets are designed to house electrical and electronic controls, instruments and components. Provides protection from dust, oil and water. For outdoor application a drip shield is recommended.

Finish
ANSI-61 gray powder coating inside and out over phosphatized surfaces. Optional panels are powder coated white.

Industry Standards
NEMA Type 4, 12, & 13
UL Listed Type 4 & 12
CSA Type 4 & 12
IEC 60529 IP 66

Size	Not Applicable, 9 in H x 9 in W, 12 in H x 12 in W x 6 in D, 12 in H x 24 in W x 6 in D, 9 in H x 21 in W, 13 in H x 11 in W, 16 in H x 12 in W x 6 in D, 16 in H x 12 in W x 8 in D, 16 in H x 14 in W x 8 in D, 16 in H x 16 in W x 6 in D, 16 in H x 16 in W x 8 in D, 16 in H x 20 in W x 6 in D, 16 in H x 20 in W x 8 in D, 13 in H x 9 in W, 20 in H x 12 in W x 6 in D, 20 in H x 16 in W x 6 in D, 20 in H x 16 in W x 8 in D, 20 in H x 16 in W x 12 in D, 20 in H x 20 in W x 6 in D, 20 in H x 20 in W x 8 in D, 20 in H x 20 in W x 12 in D, 20 in H x 24 in W x 8 in D, 17 in H x 9 in W, 17 in H x 17 in W, 24 in H x 12 in W x 6 in D, 24 in H x 16 in W x 6 in D, 24 in H x 16 in W x 8 in D, 24 in H x 20 in W x 6 in D, 24 in H x 20 in W x 8 in D, 24 in H x 20 in W x 10 in D, 24 in H x 20 in W x 12 in D, 24 in H x 20 in W x 16 in D, 24 in H x 24 in W x 6 in D, 24 in H x 24 in W x 8 in D, 24 in H x 24 in W x 10 in D, 24 in H x 24 in W x 12 in D, 24 in H x 24 in W x 16 in D, 24 in H x 30 in W x 8 in D, 24 in H x 30 in W x 10 in D, 21 in H x 13 in W, 21 in H x 17 in W, 21 in H x 21 in W, 30 in H x 16 in W x 6 in D, 30 in H x 20 in W x 8 in D, 30 in H x 20 in W x 10 in D, 30 in H x 24 in W x 8 in D, 30 in H x 24 in W x 10 in D, 30 in H x 24 in W x 12 in D, 30 in H x 24 in W x 16 in D, 30 in H x 24 in W x 20 in D, 30 in H x 24 in W x 24 in D, 30 in H x 30 in W x 8 in D, 30 in H x 30 in W x 10 in D, 30 in H x 30 in W x 12 in D, 30 in H x 36 in W x 8 in D, 27 in H x 13 in W, 27 in H x 17 in W, 27 in H x 21 in W, 27 in H x 27 in W, 36 in H x 24 in W x 8 in D, 36 in H x 24 in W x 10 in D, 36 in H x 24 in W x 12 in D, 36 in H x 24 in W x 16 in D, 36 in H x 30 in W x 8 in D, 36 in H x 30 in W x 10 in D, 36 in H x 30 in W x 12 in D, 36 in H x 30 in W x 16 in D, 36 in H x 30 in W x 20 in D, 36 in H x 36 in W x 8 in D, 36 in H x 36 in W x 12 in D, 36 in H x 36 in W x 16 in D, 33 in H x 21 in W, 33 in H x 27 in W, 33 in H x 33 in W, 40 in H x 24 in W x 12 in D, 37 in H x 21 in W, 42 in H x 24 in W x 10 in D, 42 in H x 30 in W x 8 in D, 42 in H x 30 in W x 10 in D, 42 in H x 30 in W x 12 in D, 42 in H x 30 in W x 16 in D, 42 in H x 36 in W x 8 in D, 42 in H x 36 in W x 10 in D, 42 in H x 36 in W x 12 in D, 42 in H x 36 in W x 16 in D, 39 in H x 21 in W, 39 in H x 27 in W, 39 in H x 33 in W, 48 in H x 24 in W x 8 in D, 48 in H x 24 in W x 12 in D, 48 in H x 30 in W x 10 in D, 48 in H x 30 in W x 16 in D, 48 in H x 36 in W x 8 in D, 48 in H x 36 in W x 10 in D, 48 in H x 36 in W x 12 in D, 48 in H x 36 in W x 16 in D, 48 in H x 36 in W x 20 in D, 45 in H x 21 in W, 45 in H x 27 in W, 45 in H x 33 in W, 60 in H x 24 in W x 12 in D, 60 in H x 36 in W x 10 in D, 60 in H x 36 in W x 12 in D, 60 in H x 36 in W x 16 in D, 60 in H x 36 in W x 20 in D, 57 in H x 21 in W, 57 in H x 33 in W, 72 in H x 30 in W x 12 in D, 72 in H x 30 in W x 16 in D, 72 in H x 30 in W x 24 in D, 72 in H x 36 in W x 12 in D, 72 in H x 36 in W x 16 in D, 69 in H x 27 in W, 69 in H x 33 in W, 12 in H, 12 in W, 16 in H, 16 in W, 20 in H, 20 in W, 24 in H, 24 in W, 30 in H, 36 in H
Closure Type	Type 4 Enviroline® series single door Latches, N/A
Works With	Not Applicable, Electrical and Electronic Controls, Instruments and Components, Sub-Panel for SCE-16EL1408LP, Sub-Panel for SCE-20EL1206LP, Sub-Panel for 40×24, “SCE-48EL3608LP”, “SCE-48EL3608LP”, “SCE-48EL3608LP”, “SCE-48EL3608LP”, Sub-Panel for 60×24
Features	6 mounts and fasteners per kit NEMA 4 & 12, Standard, Sub panel for 48”X36” enclosure, Dead front panel for 20 x 16 enclsoure, Dead front panel for 20 x 20 enclsoure, Dead front panel for 24 x 20 enclsoure, Dead front panel for 24 x 24 enclsoure, Dead front panel for 30 x 24 enclsoure, Dead front panel for 30 x 60 enclsoure, Dead front panel for 36 x 20 enclsoure, Dead front panel for 36 x 24 enclsoure, Dead front panel for 36 x 30 enclsoure, Dead front panel for 42 x 24 enclsoure, Dead front panel for 42 x 30 enclsoure, Dead front panel for 42 x 36 enclsoure, Dead front panel for 48 x 36 enclsoure, Dead front panel for 60 x 36 enclsoure, Dead front panel for 72 x 36 enclsoure, Chrome 7mm Square Latch with Hand Key, Recessed Coinproof Latch, Chrome Key Locking Door Latch, Chrome Wing Knob Latch, Drip held kit for 12\" wide electrical enclosures, Drip held kit for 16 in wide electrical enclosures, Drip held kit for 20 in wide electrical enclosures, Drip held kit for 24 in wide electrical enclosures, Drip held kit for 30 in wide electrical enclosures, Drip held kit for 36 in wide electrical enclosures, Drip held kit for 42 in wide electrical enclosures, Drip held kit for 48 in wide electrical enclosures, Drip held kit for 60 in wide electrical enclosures, Drip held kit for 72 in wide electrical enclosures, 4 mounts and fasteners per kit NEMA 4 & 12, 4 mounts and fasteners per kit NEMA 4, 4X & 12, 6 mounts and fasteners per kit NEMA 4, 4X & 12, Chrome Key Locking Wing Knob Latch, Padlocking Wing Knob Latch, Black
Enclosure Material	Carbon Steel
Enclosure Color	Gray
