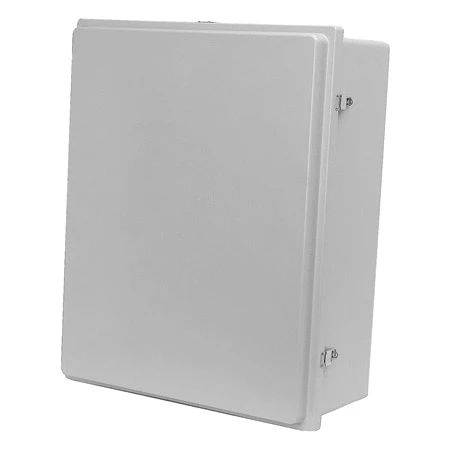

NEMA 4X (IP66) Fiberglass Enclosures From 24 X 20″ To 30 X 24″

Original price was: $166.50.Current price is: $95.99.

Protect Controls and Components Indoors or Outdoors
Suited for Higher Temperatures or Corrosive Environments
UL 94 Flammability Rating
UV Stabilized for Outdoor Use

Enclosure Material

Closure Type

Works With

Features

Clear

SKU: OM-PA2424 Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OM-AM Control Series non-metallic fiberglass electrical enclosures are designed to insulate and protect electrical controls and components in both indoors and outdoors applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 4X (IP66) fiberglass electrical cabinets have a raised cover for added depth and a variety of latching options that allow you to provide the level of security or ease of access needed for each application.

SPECIFICATIONS
Service Temperature Rate: -35 to 135°C (-31 to 266°F)
STANDARDS:
UL Types: 1, 2, 3, 4, 4X, 12 and 13
CSA Types: 1, 2, 3, 3R, 4, 4X, 12 and 13
NEMA Types: 1, 2, 3, 3R, 4, 4X, 12 and 13
IEC Type: IP66

Size	24 in H x 24 in W, 24 in H x 20 in W x 10 in D, 24 in H x 20 in W x 8 in D, 24 in H x 24 in W x 10 in D, 24 in H x 24 in W x 8 in D, 30 in H x 24 in W x 10 in D, 30 in H x 24 in W x 8 in D, 24 in H x 20 in W, 30 in H x 24 in W
Enclosure Material	Aluminum, Fiberglass, Steel
Closure Type	Not Applicable, Snap Latch, Twist Latch, Twist Latches, Snap Latches
Works With	Sub-panel for 24 x 24\" enclosure, Electrical Controls and Components, Front-panel for 24 x 20" enclosure, Front-panel for 24 x 24" enclosure, Front-panel for 30 x 24" enclosure, Sub-panel for 24 x 20\" enclosure, Sub-panel for 30 x 24\" enclosure
Features	Standard window, Viewing window
