Sale!

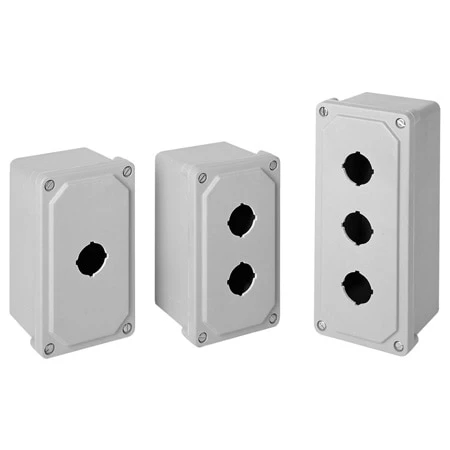

NEMA 4X (IP66) Non-Metallic Fiberglass Pushbutton Enclosures

Original price was: $80.78.Current price is: $56.55.

Suited for Higher Temperatures or Corrosive Environments
Protect Controls and Components Indoors or Outdoors
22 mm or 30mm Hole Sizes
UL 94 Flammability Rating

Cover

Features

Clear

SKU: OM-AM1PB Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

OM-AMPB Series non-metallic fiberglass pushbutton enclosures are designed to insulate and protect electrical controls and components in both indoor and outdoor applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 4X (IP66) fiberglass pushbutton enclosures feature stainless steel continuous hinge.

CONSTRUCTION

Fiberglass Reinforced Polyester Formulation
Closed Cell Neoprene Seal Designed for NEMA 4X (IP66) Rating
304 SS Continuous Hinge and Mounting Feet Included with SS Screws

SPECIFICATIONS
Service Temperature Rating: -35 to 130°C (-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12 and 13; CSA Types 1, 2, 3, 3R, 4 4X, 12 and 13; NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13; IEC Type IP66

Size	6.75 in H x 4 in W x 3.6 in D, 10 in H x 8 in W x 4 in D, 10 in H x 8 in W x 6 in D, 12 in H x 10 in W x 6 in D, 14 in H x 12 in W x 6 in D, 16 in H x 14 in W x 8 in D, 18 in H x 16 in W x 8 in D, 9 in H x 4 in W x 3.63 in D, 6 in H x 6 in W x 4 in D, 6.75 in H x 4 in W x 3.88 in D, 8 in H x 6 in W x 4 in D, 9 in H x 4 in W x 3.88 in D
Cover	Not Applicable, Solid Cover
Features	1 Push Button, 9 Push Button, 9 Push Button 22 mm button holes, 12 Push Button, 12 Push Button 22 mm button holes, 16 Push Button, 16 Push Button 22 mm button holes, 20 Push Button, 20 Push Button 22 mm button holes, 25 Push Button, 25 Push Button 22 mm button holes, 30 Push Button, 30 Push Button 22 mm button holes, 42 Push Button, 42 Push Button 22 mm button holes, 1 Push Button 22 mm button holes, 2 Push Button, 2 Push Button 22 mm button holes, 3 Push Button, 3 Push Button 22 mm button holes, 4 Push Button, 4 Push Button 22 mm button holes, Junction Box, 6 Push Button, 6 Push Button 22 mm button holes, Standard
Enclosure Material	Fiberglass
Closure Type	Flat Cover Screw Closure
Enclosure Color	Gray
Works With	Pushbutton
