Specifications
Operating Temperature Rating: -20 to 40°C (-4 to 104°F)
Enclosure Temperature Rating: -35 to 130°C (-31 to 266°F)
Current: 30A general purpose, 3-pole, 600 Vac 50/60Hz
Short Circuit Withstand Rating: 10 kA @ 600V when protected with maximum fuse
Size/Class
K5: 50A
RK5: 50A
RK1: 80A
J: 80A
Terminal Size: 14-8 AWG (Cu conductors only, 75°C)
Terminal Torque: 16 lb. in.
Materials
Enclosure: Polycarbonate
Contacts: Copper with silver alloy plating
Switch: Polybutylene terephthalate (PBT) polyester resin
Dimensions: 190 H x 144 W x 131 mm D (7.48 x 5.67 x 5.16″)
Knock-Outs: M25/32 (2) and M16 (1) top and bottom
Weight: 0.998 kg (2.2 lbs)

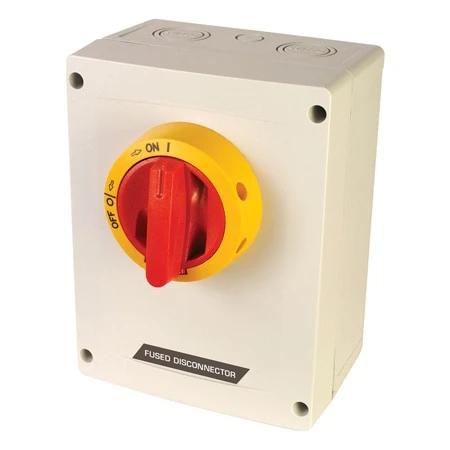

NEMA 4X Rated 3-Pole Fused Disconnect Switch
$300.64 Original price was: $300.64.$96.99Current price is: $96.99.
- Across-the-Line Motor Starting
- General Use Rating 30A, 3-Pole 600 Vac
- Interrupting Capacity Rating 10 kA
- NEMA Type 4X, IP65 for Indoor or Outdoor Use
SKU: AU-KKVM332 Categories: Accessories, Electrical Components, Manual Disconnect Switches Tag: Omega Engineering
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

These polycarbonate enclosed fused disconnect switches can be used for general purpose disconnects or locally for across-the-line manual motor controller. They are NEMA Type 4X (IP66), for indoor or outdoor use and are resistant against many chemicals and UV exposure.
| Handle Color | Black, Yellow/Red |
|---|---|
| Additional Features | 10 x 38 midget fuses, Class CC fuses |
| Switch Type | Fused Disconnect Switch |
| Relay Current | 30 A 3-pole |
| Enclosure Material | Polycarbonate |
| Rating | NEMA 4X, IP65 |
