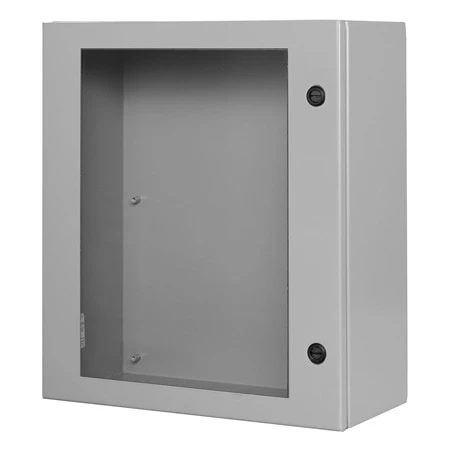

NEMA4 Junction Outdoor, Viewing Window, Steel/SS

Original price was: $107.42.Current price is: $75.19.

0.063 Carbon Steel, 304 & 316 Stainless Steel
.25′ Polycarbonate Window
Seams Continuously Welded and Ground Smooth
Flange Trough Collar Around All Sides of Door Opening with Oil-Resistant Gasket

Enclosure Material

Features

Clear

SKU: SCE-DFJ1210 Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Application
Designed to house electrical controls, instruments and components that require unrestricted viewing of the gauges or controls in areas which may be regularly hosed down or are in very wet or oily conditions. Provides protection from dust, dirt, oil, and water.

Finish
ANSI-61 gray powder coat inside and out. Optional Subpanels are powder coated white. The enclosure and sub-panels can be custom ordered in 316 stainless steel.

Industry Standards IS2
NEMA Type 4 , 12 & 13
CSA Type 4 & 12
UL Type 4 & 12
IEC 60529 IP66

Size	Not Applicable, 10 in H x 8 in W x 6 in D, 10 in H x 8 in W x 4 in D, 12 in H x 10 in W x 8 in D, 12 in H x 10 in W x 6 in D, 16 in H x 14 in W x 8 in D, 16 in H x 14 in W x 6 in D, 20 in H x 20 in W x 8 in D
Enclosure Material	Not Applicable, Carbon Steel, 304 Stainless Steel, 316 Stainless Steel
Features	Front panel kit for 12×10 enclosure, Viewing window, Front panel kit for 10×8 enclosure
Closure Type	Black Mini Quarter Turn Latches
Enclosure Color	Gray
Works With	Electrical and Electronic Controls, Instruments and Components
