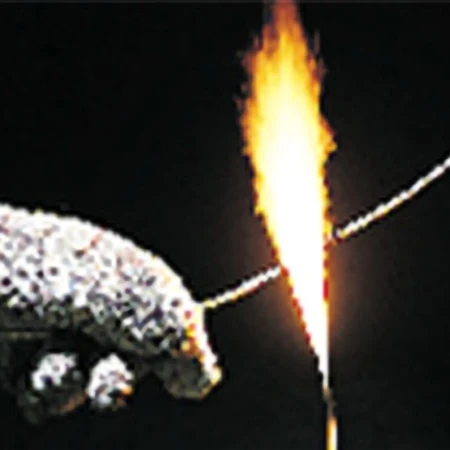

Nextel Or Silica Insulated Thermocouple Duplex Wire

Original price was: $355.00.Current price is: $96.99.

Ceramic Insulation Material is Overbraided on Std or SLE grade Wire
XC :Nextel 312 standard, rated to 1200°C (2200°F) Continuous, 1425°C (2600°F) Short Term
XS: Silica Yarn, rated to 1050°C (1900°F) Continuous
XR: Refrasil Vitreous Silica Fiber, suitable to 982°C (1800°F)

Temperature Max

Overbraiding Type

Color Code Standard

Special Limit of error

Number of Pairs

Temperature Range

Overall Insulation

Additional Feature

Cable Length

Conductor Insulation

Wire Gauge

Thermocouple Calibration Type

Clear

SKU: XT-K-20-1000 Categories: Temperature Wire and Cable, Thermocouple Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Nextel insulation a high temperature ceramic is offered with in three types of overbraiding. XC is the standard braid, XT is a tight braid and XL is a loose braid. The three braids affect only the amount of Nextel used, not the overall temperature rating. Insulation is braided over each wire or leg then a final jacket of the same insulation is braided over the pair of wires.

XC4: Nextel 440 insulation has the highest temperature rating to 1375C (2500F)

Silica insulation is a high purity (SiO2 > 99%) ceramic yarn, that offers high temperature protection up to 2000°F at an economical price. Refrasil insulation is a vitreous silica fiber.

Inconel 600 ,304SS or Tinned Copper can be added and overbraided as the outer jacket over the Nextel insulation . This type of durable outer jacket can add abrasion protection and signal shielding.

Temperature Max	980, 1375, 650, 540, 430, 590, 480, 370, 1090, 870
Overbraiding Type	Nextel 312 Tight Braid, Nextel 440 Standard Braid, Inconel Overbraid, none, Nextel 312 Standard Braid, Stainless Steel Overbraid, Nextel Ceramic Loose Braiding, Silica Braid
Conductor type	Solid
Temperature Min	0
Temperature Unit	°C
Category	Thermocouple
Color Code Standard	ANSI (Standard), IEC, Solid
Special Limit of error	No, Yes
Number of Pairs	None, 1.0
Temperature Range	0 to 980°C (32 to 1800°F), 0 to 1375°C (32 to 2500°F), 0 to 650°C (32 to 1200°F), 0 to 540°C (32 to 1000°F), 0 to 430°C (32 to 800°F), 0 to 590°C (32 to 1100°F), 0 to 480°C (32 to 900°F), 0 to 370°C (32 to 700°F), 0 to 1090°C (32 to 2000°F), 0 to 870°C (32 to 1600°F)
Overall Insulation	Nextel Ceramic, Nextel Ceramic 440, Silica
Additional Feature	None, Standard Braid, EM, Tight Braid
Cable Length	1000 ft, 100 ft, 150 m, 200 ft, 25 ft, 300 m, 30 m, 50 ft, 500 ft, 7.5 m, 15 m, 60 m, 0.75 mm, 100 m
Conductor Insulation	Nextel Ceramic, Nextel Ceramic 440, Silica
Wire Gauge	20 AWG, 14 AWG, 24 AWG, Not applicable
Thermocouple Calibration Type	K, E, J, N
Cable Type	Thermocouple Wire
