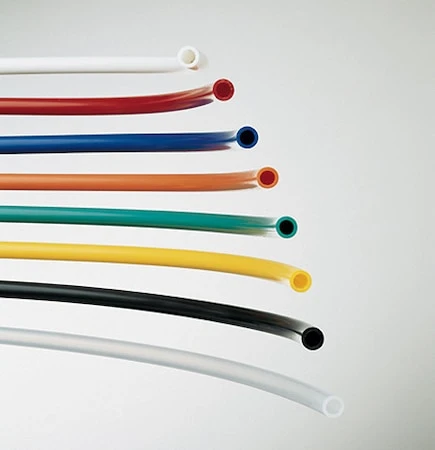

OMEGAFLEX™ Low Density Polyethylene Tubing
Original price was: $75.15.$52.61Current price is: $52.61.
- Specific Gravity: .921
- Hardness: 50 Shore D
- Tensile Strength, PSI: 1600
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Polyethylene tubing is not to be used with barbed fittings due to its tendency to form stress cracks. Use compression-type fittings instead.
Specifications
Specific Gravity: .921
Tensile Strength, psi: 1600 Hardness: 50 Shore D
Elongation at Break, %: 500
Brittle Temperature: -60°C (–76°F)
Maximum Operating Temperature: 60°C (140°F)
Specifications shown are typical and are meant only as a guide. Field testing is recommended to find actual values in the given application.
Note: The listed working pressures are based on a short-term burst using a 4-to-1 safety factor.
| Inner Diameter | 1/2 in, 1 1/4 in, 1 in, 3/8 in, 3/4 in, 1 1/2 in, 0.17 in, 1/8 in, 7/8 in, 5/8 in, 1/4 in, 3/16 in |
|---|---|
| Outer Diameter | 5/8 in, 1 1/2 in, 1 1/4 in, 1/2 in, 1 in, 1 3/4 in, 1/4 in, 3/4 in, 3/8 in, 5/16 in, 7/8 in |
| Max Operating Pressure | 70 psi, 59 psi, 72 psi, 90 psi, 50 psi, 135 psi, 180 psi, 45 psi, 60 psi, 120 psi, 140 psi, 100 psi |
| Color | Black, Clear, Blue, Green, Orange, Red, White, Yellow |
| Length | 100 ft, 50 ft, 500 ft |
| Material | Polyethylene |
