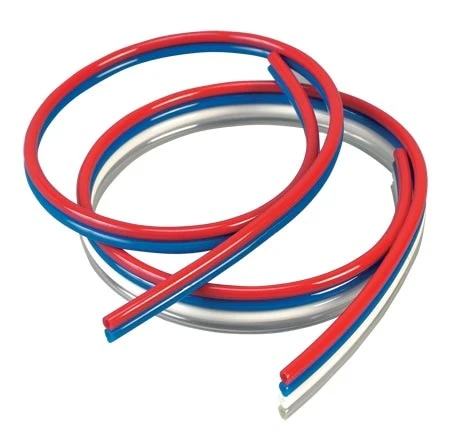

Omegaflex® Multi-Colored Ribbon Polyurethane Tubing

Original price was: $220.54.Current price is: $97.99.

Faster Installation of Multiple Lines
Eliminate Need for Additional Jacketing
Color Code Identification
All the Qualities of Polyurethane Tubing

Inner Diameter

Outer Diameter

Max Operating Pressure

Color

Length

Clear

SKU: MCRPT-2-14160-100 Categories: Accessories, Tube by Length Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The MCRPT series has been discontinued. Please contact our Flow Engineering department for a viable replacement.

Multi-Color ribbon polyurethane tubing is a bonded ribbon of polyurethane tubing. The bonded tubing offers quicker installation and eliminates the need for additional handling to install spiral wrapping, channels or other bundling materials. The multi-color coded tubing provides quick identification of process lines for tracing and trouble shooting.

TUBES	COLORS
2	Red, blue
4	Red, blue, white and clear

SPECIFICATIONS
Temperature Range: -40 to 73°C(-40 to 165°F)
Vacuum Rating: To 28″ Hg
Working Pressure: 3:1 Safety factor

Inner Diameter	5/32 in, 0.066 in, 0.094 in
Outer Diameter	1/4 in, 1/8 in, 5/32 in
Max Operating Pressure	265 psi, 255 psi, 210 psi, 175 psi
Color	Red, Blue, Red, Blue, Clear
Length	100 ft, 50 ft
Material	Polyurethane
