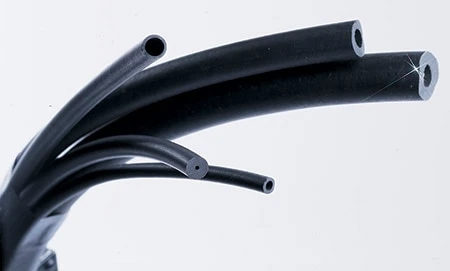

OMEGAFLEX™ Santoprene Flexible Rubber Tubing

Original price was: $84.00.Current price is: $58.80.

Broad Operating Temp. Range: -59 to 135°C (-75 to 275°F)
Available in Shore A Hardnesses of 64 or 73
Suitable for Many Peristaltic Pumps
FDA Tubing (Tan Color)

Inner Diameter

Outer Diameter

Color

Length

Features

Clear

SKU: TYSP7F-916716-50 Categories: Accessories, Tube by Length Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Santoprene thermoplastic rubber tubing is offered with Shore A hardness rating of 64A (TYSP6) or 73A (TYSP7). The tubing resists fatigue and exposure to ozone and ultraviolet radiation.

	TYSP6	TYSP7
Hardness, Shore A	64A	73A
Specific Gravity	0.97	0.97
Tensile Strength, psi	950	1,100
Elongation at Break, %	400	410
Heat Distortion Temp.	135°C (275°F)	135°C (275°F)
Low Temp. Flexibility	Below 60°C (140°F)

1/16″to 3/4″ ID TUBING
Regular Tubing (Black Color) Model No.	FDA Approved Tubing (Tan Color) Model No.	Dimensions
Regular Tubing (Black Color) Model No.	FDA Approved Tubing (Tan Color) Model No.	OD (in)	ID (in)	Wall (in)
TYSP(*)-316116-50	TYSP(*)F-316116-50	3/16	1/16	1/16
TYSP(*)-1418-50	TYSP(*)F-1418-50	1/4	1/8	1/16
TYSP(*)-3818-50	TYSP(*)F-3818-50	3/8	1/8	1/8
TYSP(*)-516316-50	TYSP(*)F-516316-50	5/16	3/16	1/16
TYSP(*)-38316-50	TYSP(*)F-38316-50	3/8	3/16	3/32
TYSP(*)-916316-50	TYSP(*)F-916316-50	9/16	3/16	3/16
TYSP(*)-3814-50	TYSP(*)F-3814-50	3/8	1/4	1/16
TYSP(*)-71614-50	TYSP(*)F-71614-50	7/16	1/4	3/32
TYSP(*)-1214-50	TYSP(*)F-1214-50	1/2	1/4	1/8
TYSP(*)-5814-50	TYSP(*)F-5814-50	5/8	1/4	3/16
TYSP(*)-716516-50	TYSP(*)F-716516-50	7/16	5/16	1/16
TYSP(*)-12516-50	TYSP(*)F-12516-50	1/2	5/16	3/32
TYSP(*)-18116-50	TYSP(*)F-1316516-	1/8	1/16	1/4
TYSP(*)-1238-50	TYSP(*)F-1238-50	1/2	3/8	1/16
TYSP(*)-91638-50	TYSP(*)F-91638-50	9/16	3/8	3/32
TYSP(*)-5838-50	TYSP(*)F-5838-50	5/8	3/8	1/8
TYSP(*)-138-50	TYSP(*)F-138-50	1	3/8	5/16
TYSP(*)-916716-50	TYSP(*)F-916716-50	9/16	7/16	1/16
TYSP(*)-5812-50	TYSP(*)F-5812-50	5/8	1/2	1/16
TYSP(*)-111612-50	TYSP(*)F-111612-50	11/16	1/2	3/32
TYSP(*)-3412-50	TYSP(*)F-3412-50	3/4	1/2	1/8
TYSP(*)-7858-50	TYSP(*)F-7858-50	7/8	5/8	1/8
TYSP(*)-134-50	TYSP(*)F-134-50	1	3/4	1/8

* Specify durometer: 6 (for 64A), or 7 (for 73A).

Inner Diameter	7/16 in, 3/16 in, 1/2 in, 1/4 in, 3/8 in, 5/16 in, 3/4 in, 1/8 in, 1/16 in, 5/8 in
Outer Diameter	9/16 in, 1 1/16 in, 1/2 in, 13/16 in, 1 in, 1/4 in, 3/16 in, 3/4 in, 3/8 in, 5/16 in, 5/8 in, 7/16 in, 7/8 in, 1/8 in, 11/16 in
Color	Tan, Black
Length	50 ft, Not Applicable
Features	FDA Approved Tubing, 73A Hardness, Standard Tubing, 64A Hardness, FDA Approved Tubing, 64A Hardness, Standard Tubing, 73A Hardness
Material	Santoprene
