Panel Punches & Hole Saws For Temperature Connectors & DIN Meters

Original price was: $242.03.Current price is: $98.99.

DIN Size Panel Punches – DPP Series
• 1/32, 3/64, 1/16, 1/16 Square, 1/8 and 1/4 DIN Sizes
• Will Accept any Standard DIN Size Controllers and Panel Meters
• Will Cut a Clean Hole in up to 11 Gage (.090) Aluminum or up to 14 Gage (.075) Mild Steel
Rectangular Hole Punches – CP Series
• Rugged Industrial Design
• Square Corners
• Sizes to Mount All OMEGA Connectors
• Keyed Design Assures Alignment of Punch and Die
• Simply Drill a Pilot Hole and Then Punch Out the Exact Shape for Your Connector
• For panels up to 1.5mm (0.06″) Thick
Round Hole Punches – RHS and RHP Series
• No Reaming or Filing
• 6.35 mm (1/4″) or 9.52 (3/8″) Pilot Hole
• Exact Size for RMJ and RSJ Connectors
Hole Saws – RS Series
• For Panels Over 3 mm (1/8″)Thick
• Replaceable Blades
• 6.35 mm (1/4″) Pilot Drill

Pilot Hole Size

Cutout Height

Cutout Width

Tool Type

Diameter

Clear

SKU: CP-2 Categories: Accessories, Punches and Hole Saws, Tools Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

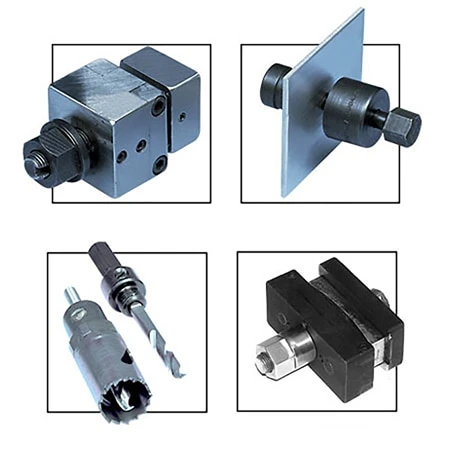

Panel Punches
The panel punches are designed to create panel cut outs for OMEGA’s family of thermocouple connectors. Three styles of panel punches are available. The CP series is for rectangular connectors, the RHS is for round connectors and the DPP are DIN sized panel punches.

RHS Hole Saws
Use your hand drill or drill press to fabricate jack panels with hole saws and around hole connectors. When the plate is too thick for punches, the saw is the solution. Complete assembly including saw, pilot drill, and mandril.

Model Type	Model No.	Cutout Dimensions mm (in)	Designed For
Rectangular Connectors	CP-1	8.1 x 16.8 (.318 x .661)	SMP, SMPW
	CP-2	9.5.1 x 16.7 (.375 x .656)	NMP
	CP-3	13.5 x 26.2 (.531 x 1.031)	OST, OGP NOX, OSTW
	CP-4	13.1 x 36.8 (.516 x 1.450)	OTP
	CP-5	16.1 x 30.4 (.635 x 1.195)	JP, SPJ, UPJ
	CP-6	16.1 x 41.4 (.635 x 1.630)	TPJ
	CP-7	16.4 x 26 (.646 x 1.024)	NHX
	CP-8	9.9 x 19.4 (.390 x .765)	SHX
DIN Size Panel Punches	DPP-1	22.2 x 45 (.874 x 1.772)	1/32 DIN
	DPP-2	22.2 x 68 (.874 x 2.677)	3/64 DIN
	DPP-3	22.2 x 92 (.874 x 3.622)	1/16 DIN
	DPP-4	45 x 45 (1.772 x 1.772)	1/16 DIN Square
	DPP-5	45 x 92 (1.772 x 3.622)	1/8 DIN
	DPP-6	92 x 92 (3.622 x 3.622)	1/4 DIN
Round Connectors	RHS-43	43 (1 11/16) Diameter	CN77R3 & R5 Panel Meters
	RHP-58	15.87 (.625) Diameter	RMJ
	RHP-78	22.22 (.875) Diameter	RSJ
	RHS-58	15.87 (.625) Diameter	RMJ
	RHS-78	22.22 (.875) Diameter	RSJ
	RS-58	15.87 (.625) Diameter	RMJ
	RS-78	22.22 (.875) Diameter	RSJ

Pilot Hole Size	7.9 mm (5/16 in), 9.5 mm (3/8 in), 12.7 mm (1/2 in), 19 mm (3/4 in), 9.52 mm (3/8 in), 6.35 mm (1/4 in), Not Applicable
Cutout Height	9.5 mm (0.375 in), 13.5 mm (0.531 in), 22.5 mm (0.886 in), 45 mm (1.772 in), 92 mm (3.622 in), Not Applicable
Cutout Width	16.7 mm (0.656 in), 26.2 mm (1.031 in), 45 mm (1.772 in), 68 mm (2.677 in), 92 mm (3.622 in), Not Applicable
Tool Type	For Rectangular Connectors such as NMP, For Rectangular Connectors such as OSTW, OGP, NOX, USTW, 1⁄32 DIN panel punch, 3⁄64 DIN panel punch, 1⁄16 DIN panel punch, 1⁄16 DIN Square panel punch, 1/8 DIN panel punch, 1⁄4 DIN panel punch, For Round Connectors such as RSJ, For Round Connectors such as CN77R3 & R5, For Round Connectors such as RMJ, Replacement Saws for RSJ Connectors, Replacement Saws for RMJ Connectors
Diameter	Not Applicable, 22.22 mm (0.875 in), 43 mm (1 11/16 in), 15.87 mm (0.625 in)
