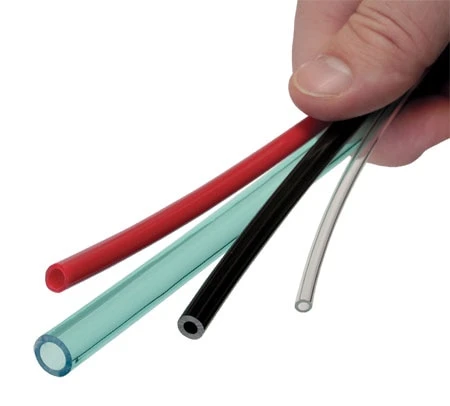

Pneumatic Airline Tubing, Used For Compressed Air Systems
Original price was: $16.22.$11.35Current price is: $11.35.
- Kink and Abrasion Resistant
- Resistant to Chemicals, Water, Fuel, Oil and Fungus
- UV Stabilized
- NSF61 Rated, Meets UL 94BH
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
| CODE | COLOR |
|---|---|
| -BLK | Black |
| -Y | Yellow |
| -GN | Green |
| -BL | Blue |
| -R | Red |
| -TRBL | Translucent Blue |
| Note: Specifications listed are meant only as a guide. Each user must test the tubing under their operating conditions to determine the tubing’s suitability for the particular application. | |
Omega’s TYUTH95 Series polyurethane tubing is resistant to chemicals, water, fuel, oil and fungus. This product is extremely flexible and highly resistant to abrasion and kinking. In addition, polyurethane has excellent “memory” and can be stretched and flexed, but will return to its original shape. Omegaflex® air line tubing is made from 95A shore durometer, ether-based polyurethane and is an excellent choice for compressed air systems. It is ideal for Push-to-Connect airline fittings and easily attaches to pneumatic valves, air filters/regulators, pressure relief valve, and airline lubricators. This extruded tubing is a good choice for air tools and accessories.
SPECIFICATIONS
Temperature Range: -40 to 73°C (-40 to 165°F)
Vacuum Rating: To 28″ Hg
Working Pressure: 3:1 Safety factor
| Inner Diameter | 0.094 in, 0.160 in, 106 in, 0.125 in, 0.066 in, 0.107 in, 1.8 mm, 0.245 in, 2.4 in, 4 mm, 5 mm |
|---|---|
| Outer Diameter | 5/32 in, 0.250 in, 1/4 in, 1/8 in, 3/16 in, 3 mm, 3/8 in, 4.0 in, 0.156 in, 6 mm, 8 mm |
| Max Operating Pressure | 210 psi @ 24°C (75°F), 175 psi @ 24°C (75°F), 265 psi @ 24°C (75°F), 255 psi @ 24°C (75°F), 220 psi @ 24°C (75°F), 230 psi @ 24°C (75°F), 170 psi @ 24°C (75°F), 160 psi @ 24°C (75°F), 190 psi @ 24°C (75°F) |
| Color | Translucent Blue, Clear, Blue, Black, Green, Red, Yellow |
| Length | 50 ft, 100 ft, 1000 ft, 2500 ft, 2000 ft, 15 m, 30 m, 500 ft |
