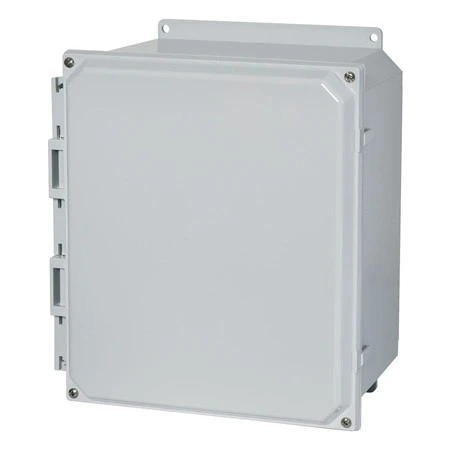

Polycarbonate Electrical Enclosures With Solid Or Clear Covers

Original price was: $132.63.Current price is: $92.84.

Suited for Higher Temperatures or Corrosive Environments
Protect Controls and Components Indoor or Outdoors
Flammability Rating V-0 per UL 94
UV Stabilized for Outdoor Use

Enclosure Material

Closure Type

Enclosure Color

Works With

Cover

Clear

SKU: AMP1426HF Categories: Accessories, Electrical Enclosures, Protection Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

AMP Series non-metallic polycarbonate enclosures are designed to insulate and protect electrical controls and components in both indoor and outdoor applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 4X and IP66 plastic junction boxes feature raised covers with a variety of screw or latching options that allow you to provide the level of security or ease of access needed for each application. Hinged models are constructed with a stainless steel hinge pin and padlocking latches are available in stainless steel or non-corrosive plastic snap latches. The AMP Series enclosures are well suitable for mild acid conditions such as aluminum chloride, boric acid, calcium chloride, sea water, sodium nitrate and zinc chloride. AMP Series plastic enclosures are available with the added feature of a raised cover. The cover adds an additional 22 mm (0.88′) of depth to accommodate meters and controllers, switches and other devices, and can be used with the optional front panel for maximum configuration within a single enclosure.

Optional Panels
‘AMP-PLA’ panels are 2.54 mm (.100′) thick aluminum rear mount sub-panels
‘SCE’ panels are 1.98mm (0.078′) thick, white powder coated, carbon steel for rear mounting
‘OM-HFPP’ panels are 2.28 mm (0.090′) thick aluminum front panels that can be mounted in the front of the box and are adjustable to 38 mm (1.5′) deep into the box.
Specifications
Temperature Rating: -35 to 107°C (-31 to 225°F)
UV Rating: f1 per UL 746C
Internal Mounting: #10-32 threaded brass inserts for sub-panel, plastic bosses for DIN rail for #10 sheet metal screws
Standards: UL50, UL50E, UL508A and UL706C
    UL Types: 1, 2, 3, 4, 4x, 12 and 13
    CSA-C22: No. 14
    CAN/CSA-C22: No.94
    CSA Types: 1, 2, 3, 3R, 4 4X, 12 and 13
    NEMA Types: 1, 2, 3, 3R, 4, 4X, 12 and 13
    IEC 60529: Type IP66
Construction
Materials: Injection molded polycarbonate thermoplastic
Hinge: Molded hinge with 304 stainless steel pin
Color: Light gray – RAL#7035
Cover Seal: Closed cell neoprene, in continuous tongue and grove channel

Size	14 in H x 12 in W x 6 in D, Box Size 252 mm (9.93 in) x 207 mm (8.16 in) x 101 mm (3.98 in), 10 in H x 8 in W x 4 in D, Box Size 303 mm (11.93 in) x 258 mm (10.16 in) x 152 mm (5.98 in), 12 in H x 10 in W x 6 in D, Box Size 354 mm (13.93 in) x 309 mm (12.16 in) x 152 mm (5.98 in), Box Size 151 mm (5.93 in) x 156 mm (6.16 in) x 101 mm (3.98 in), 6 in H x 6 in W x 4 in D, 8 in H x 6 in W x 4 in D
Enclosure Material	Polycarbonate, Not Applicable
Closure Type	Hinge with 2 Screws, Not Applicable, 4 Screw Closure, SS Snap Latch, Plastic Snap Latch
Enclosure Color	Light gray – RAL#7035, Not Applicable
Works With	Electrical Controls and Components, Not Applicable
Cover	Solid, Not Applicable, Clear
