Pre-Wired Strain Gauges For Easy Installation

Original price was: $349.00.Current price is: $95.99.

Pre-Wired Gages Make Installations Easy!
No Soldering at the Measuring Point
Sold in Packs of Ten
Each Gage has 50 mm of PTFE Cable before Transitioning to AWG 28 Leads to Prevent Leads from Adhering During Installation

Grid Length Range

Grid Length

Grid Width

Connection Type

Resistance

Clear

SKU: KFH-06-120-D17-11L1M2S Categories: Force & Strain Measurement, Rosette Strain Gauges, Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

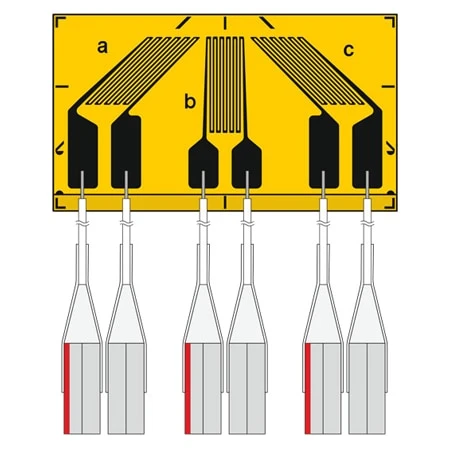

The planar rosette pattern (0 / 45°/ 90°) allows precision strain measurement by eliminating the errors often associated with a stacked pattern. These gages are available with either two 1-meter leads or three 3-meter leads per grid and are compensated for steel.

Specifications See Spec Sheet for full specifications
Strain Gage Construction Foil strain gage with embedded measuring grid
Measuring Grid
    Material Constantan
    Thickness µm (microinch) 3.8 or 5 (150 or 197), depending upon strain gage type
    Carrier Material Polyimide
    Thickness µm (microinch) 45 ± 10 (1.772 ± 394)
Connections PTFE wire, Ø – 0.051 mm², approximately 50 mm long, connected to AWG 28 ribbon cables (PVC insulated) through solder sleeves in 2- or 3-wire configurations
Nominal Resistance Ω 120 or 350 depending upon gage
Resistance Tolerance % ±0.35, with 0.6 mm and 1.5 mm grid length % ±1
Gage Factor approximately 2 (stated on package)
Gage Factor Tolerance % ±1, with 0.6 mm and 1.5 mm grid length % ±1.5, temperature coefficient of gage factor 1/K [1/°F] (115 ± 10) x 10-6 [(64 ± 5.5) x 10-6, nominal value of gage factor temperature coefficient Specified on each package
Applicable Bonding Materials
    Cold Cure Adhesives SG496, SG401
Heat Cure Adhesives TT300

Grid Length Range	0 to 3 mm, 3 to 6 mm
Grid Length	0.6 mm, 1.5 mm, 3 mm, 6 mm
Grid Width	1.1 mm, 1.5 mm, 2 mm
Connection Type	Two 1 m leads, Three 3 m leads
Resistance	120 Ω, 350 Ω
Grid Style	0°/45°/90° Planar Rosettes
Temperature Range Units	°C
Temperature Range Min	-10
Temperature Range Max	155
STC number	ST
Maximum Strain	50,000 μm
Features	Pre wired
