PSU-93, Unregulated 16 To 23 Vdc Output Power,Plug In Style
Original price was: $158.43.$95.99Current price is: $95.99.
- PSU-93: Output Power – Unregulated 16 to 23 Vdc
- FPW-15: Output Power – Regulated 15vdc at 400mA
- Plug in Style
- Used for Pressure and Temperature Tranducers
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
| Input | 105VAC | 120VAC | 130VAC | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output (mA) | Output Vdc | Output Vdc | Output Vdc | ||||||||||
| 20 | 23 | 25 | ||||||||||
| 17.8 | 20.5 | 22 | |||||||||||
| 16.5 | 19.5 | 21 | |||||||||||
| 15 | 17.5 | 19 | |||||||||||
| 13.5 | 16 | 17 |

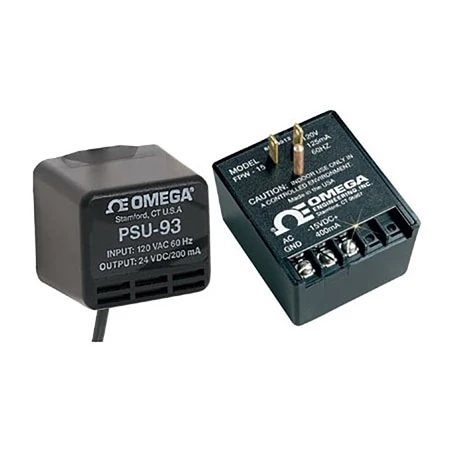

The PSU-93 and FPW-15 are power supplies which can provide power for signal conditioners, temperature and pressure transmitters and other electronic equipment. The PSU-93 is an unregulated power supply providing 16 to 23 vdc with a maximum output of 300mA. The FPW-15 is a regulated power supply delivering 15vdc at 400mA. These power supplies provide a low-cost solution to excitation problems. The compact design allows for plug in operation eliminating the need for hard wiring.
| Supply Voltage | 15 Vdc |
|---|
