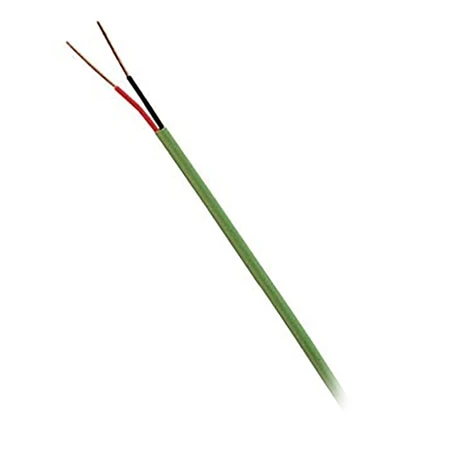

R And S Type Thermocouple Duplex Extension Wire

Original price was: $171.00.Current price is: $95.99.

High Quality Type “R/S” Thermocouple Grade Wire
In Stock – Available for Immediate Shipment
Choice of Insulation, Wire Gage, & Length

Temperature Max

Temperature Range

Color Code Standard

Overbraiding Type

Overall Insulation

Cable Length

Conductor Insulation

Wire Gauge

Clear

SKU: EXTT-RS-20-100 Categories: Temperature Wire and Cable, Thermocouple Wires Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

NSI Color Code :Positive Wire, Black Negative Wire, Red Overall, Green

Use the table below as a guide for types available. The “To Order” box contains some examples of popular models. Use the “Part Number Builder” (Below Table) to get pricing for all available models.

Insulation AWG

Insulation	AWG No.	Model Number	Price 1000′	Type Wire	Insulation		Max. Temp*		Nominal Size	Wt.† lb/1000′
Insulation	AWG No.	Model Number	Price 1000′	Type Wire	Conductor	Overall	°F	°C	Nominal Size	Wt.† lb/1000′
Glass	20	EXGG-RS-20	$480	Solid	Glass Braid	Glass Braid	392	200	.060 x .095	9
Glass	24	EXGG-RS-24	430	Solid	Glass Braid	Glass Braid	392	200	.050 x .080	5
Neoflon PFA	20	EXTT-RS-20	510	Solid	PFA	PFA	392	200	.068 x .116	11
Neoflon PFA	24	EXTT-RS-24	480	Solid	PFA	PFA	392	200	.056 x .092	7
Polyvinyl	16	EXPP-RS-16	555	Solid	Polyvinyl	Polyvinyl	221	105	.118 x .195	26
Neoflon FEP	20	EXFF-RS-20	530	Solid	FEP	FEP	392	200	.068 x .116	11
Neoflon FEP	24	EXFF-RS-24	430	Solid	FEP	FEP	392	200	.056 x .092	7

*Maximum temperature is for extension grade wire or insulation, whichever is lower.
^†Weight of spool and wire, rounded up to next highest lb. (does not include packing material).

Temperature Max	200, 105
Temperature Unit	°C
Number of Pairs	None
Cable Type	Extension Wire
Additional Feature	None
Conductor type	Solid
Thermocouple Calibration Type	R/S
Temperature Min	0
Category	Thermocouple
Temperature Range	0 to 200°C (32 to 392°F), 0 to 105°C (32 to 221°F)
Color Code Standard	ANSI (Standard), IEC
Overbraiding Type	none, Stainless Steel Overbraid, Tinned Copper Overbraid
Overall Insulation	PFA, FEP, Glass Braid, Polyvinyl (PVC)
Cable Length	100 ft, 1000 ft, 150 m, 200 ft, 25 ft, 300 m, 30 m, 50 ft, 500 ft, 7.5 m, 15 m, 60 m
Conductor Insulation	PFA, FEP, Glass Braid, Polyvinyl (PVC)
Wire Gauge	20 AWG, 24 AWG, 16 AWG
Special Limit of error	No
