Retractable Cable, 2 Wire, Thermocouples, RTDs, Thermistors
Original price was: $41.22.$28.85Current price is: $28.85.
- J, K, T and E Thermocouple Calibrations and 3-Wire Copper for RTDxe2x80x99s and Thermistors
- Expansion Ratio up to 500%xe2x80x941 Foot of Cable Stretches to 5 Feet
- TPE Plastic Jacket for Indoor and Outdoor Use to 220xc2xb0F (104xc2xb0C)
- Retracted Coil Lengths of 1, 2, 3 and 4 Feet with 6′ Straight Ends
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers

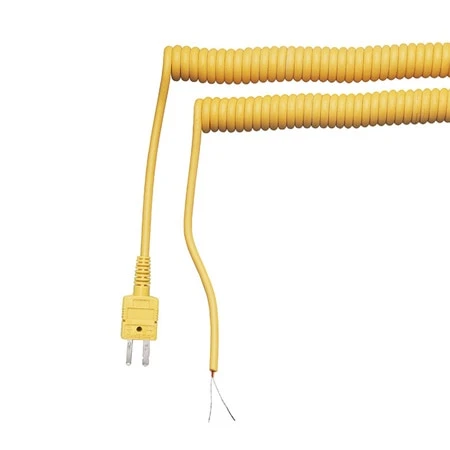

OMEGA™ Retractable Sensor Cable is color coded and spring coiled, for use with thermocouples, RTD’s and thermistors.
To achieve a superior jacket construction, OMEGA has employed the latest in jacketing material: TPE (thermoplastic elastomer), a unique family of thermoplastics which exhibits characteristics previously found only in rubber compounds. TPE is extremely tough and flexible, and has excellent abrasion resistance. Our special construction technique yields an expansion rate of up to 500%.
OMEGA’s retractable sensor cables are specifically recommended for use with electronic-type indicators, either panel, handheld or bench type models. The cables should not be used with self powered, unamplified analog meters, such as OMEGA™ Series 7000 pyrometers. Retractable sensor cables have hundreds of applications: oscillating machinery, handheld surface probes, or wherever retractable sensor cables are required.
Color Code of Cables
| ANSI Code | Calibration | Jacket | +Wire | –Wire |
| J | Iron/Constantan | Black | White | Red |
| K | CHROMEGA™/ALOMEGA™ | Yellow | Yellow | Red |
| T | Copper/Constantan | Blue | Blue | Red |
| E | CHROMEGA™/Constantan | Purple | Purple | Red |
| RTD/TH | Copper (3-Wire) | White | 2 Black | Red |
Typical Resistance of Cables
| Ohms Per Running Foot of Cable 30 cm (1 ft) Coiled (150 cm [5 ft] Extended) | Ohms Per Foot of Wire Three Wires Per Cable) | ||||
| J | K | T | E | RTD and Thermistor | |
| 16.3 | 27.5 | 14 | 33.1 | 0.57 | |
| Model No. | Input Type | O.D. mm (in) |
| RSC-(1)-(2)-(3)-(4) | T/C | 4.2 mm (0.165′) |
| RSC-RTD-(2)-(3)-(4) | RTD | 4.4 mm (0.175′) |
| RSC-TH-(2)-(3)-(4) | TH | 4.24 mm (0.175′) |
| RSCM*-(1)-(2)-(3)-(4) | T/C | 3.4 mm (0.135′) |
How To Order
1. Fill the 1st box (1) with desired ANSI Calibration. Use ANSI symbols “J”, “K”, “T”, “E” for thermocouple calibration; “RTD” for resistance temperature detector; or “TH” for thermistor.
2. Fill in 2nd box (2) with retracted coil length in cm (ft): 30 (1), 60 (2), 90 (3) or 120 (4).
3. Fill in 3rd box (3) with termination style number (one end).
4. Fill in 4th box (4) with termination style number (other end).
* M = Miniature Retractable Cable
† Indicate associated meter or pin out desired for connector
| Use With Sensor Type | Thermocouple Type T, Thermocouple Type E, Thermocouple Type J, Thermocouple Type J IEC, Thermocouple Type K, Thermocouple Type K IEC, Thermocouple Type N, RTD, Thermistor, Thermocouple Type T IEC |
|---|---|
| Connector Side A | OST-F (Female), Trimmed Ends (standard), Spade Lugs, OST-M (Male), SMP-M (Male), SMP-F (Female), MTP-F (Female-Thermistor and RTD only), OTP-F (Female-Thermistor and RTD only), OTP-M(Male-Thermistor and RTD only), TA3-FL (Female-Thermistor and RTD only), MTP-M (Male-Thermistor and RTD only), OTP-M (Male-Thermistor and RTD only), MTP-F(Female-Thermistor and RTD only), OTP-F (Female) |
| Connector Side B | OST-M (Male), Trimmed Ends (standard), OST-F (Female), Spade Lugs, SMP-M (Male), SMP-F (Female), Not Applicable, OTP-F (Female-Thermistor and RTD only), OST-F(Female), HH804 Connetor, OTP-M (Male-Thermistor and RTD only), TA3-ML (Male-Thermistor and RTD only), MTP-M (Male-Thermistor and RTD only), MTP-F (Female-Thermistor and RTD only), OTP-M (Male), TA3-FL (Female-Thermistor and RTD only), TA4F Connector |
| Cable Length | 10 ft, 5 ft, 15 ft, 20 ft, 150 cm, 305 cm, 450 cm |
| Retracted Coil Length | 2 ft, 1 ft, 3 ft, 4 ft, 30 cm, 60 cm, 90 cm |
| Conductor Insulation Color | Jacket Blue, +Wire Blue, –Wire Red, Jacket Purple, +Wire Purple, –Wire Red, Jacket Black, +Wire White, –Wire Red, Jacket Yellow, +Wire Yellow, –Wire Red, Not Applicable, Jacket White, +Wire 2 Black, –Wire Red |
| Features | Retractable sensor cable, Not Applicable, Retractable sensor cable ROHS Compliant, Miniature retractable sensor cable, Miniature retractable sensor cable ROHS Compliant |
| Conductor Insulation | TPE thermoplastic elastomer outer jacket |
| Wire Type | 28 Gauge stranded wire (7 strand x 36 gauge) |
