Sanitary Thermocouple & RTD Protection Heads
Original price was: $39.31.$27.52Current price is: $27.52.
- Stainless Steel, Aluminum, and Polypropylene
- Available Without Terminal Blocks or with 2 or 4 Terminals
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
| Model No. | Material | Tube Entry | Wire Entry |
|---|---|---|---|
| NB2 | Aluminum | ½ NPT | ½ NPT |
| NB9W | White Polypropylene | ½ NPT | ¾ NPT |
| NB13 | 316 SS | ½ NPT | ½ NPT |
| NB14 | 316 SS | ¼ NPT | ¼ NPT |
| NB15 | 316 SS | ½ NPT | ½ NPT |
| NB16W | White Polypropylene | ½ NPT | ½ NPT |

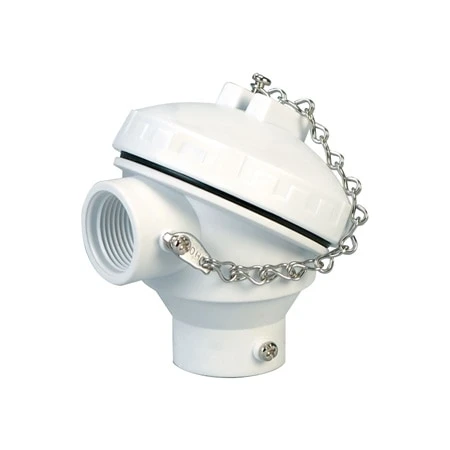

Special connection heads are available for sanitary and other custom applications. Select from Aluminum, White polypropylene or 316 SS, these heads are available with or without a ceramic terminal block. Terminal blocks feature either two or four terminals for fast connections.
Please refer to the specification sheet above for photographs of the individual head types.
| Material | Polypropylene, Ceramic, 316 Stainless Steel, 321 Stainless Steel |
|---|---|
| Process Connection | 3/4" NPT, Not Applicable, 1/2" NPT, 1/4" NPT |
| Terminals | No terminal block, 2 terminals (CH-73), 4 terminals (CH-74), 2 terminals (CH-73/M12), 4 terminals (CH-74/M12) |
| Protection Tube Entry | 1/2" NPT, Not Applicable, 1/4" NPT |
