Shaft-to-Shaft Rotary Torque Sensors With Optional Encoder

Original price was: $352.00.Current price is: $99.99.

Silver Slip Rings for Secure Connections
Operating Speed Up to 5000 RPM
Optional Optical Encoder for Angle or Speed Measurement

Torque Range

Weight Capacity

Clear

SKU: TQ513-200 Categories: Force & Strain Measurement, Torque Sensors Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

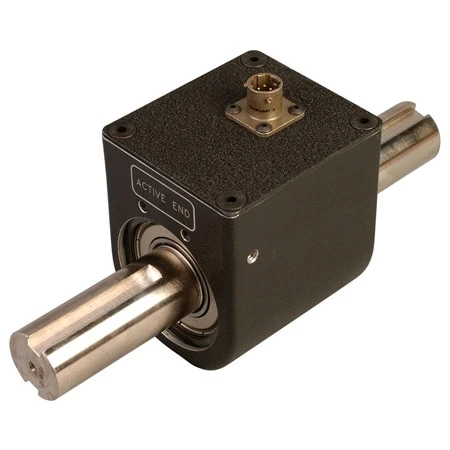

The TQ513 Series are designed to measure the rotating torque using shaft-to-shaft in-line placement. Heavy-duty silver slip rings provide secure transmission of power and signal from the rotating shaft to your instrumentation. An optional 1024 ppr optical encoder is available to measure angle or speed.

SPECIFICATIONS
Excitation Voltage: 20 Vdc maximum
Bridge Resistance: 1000 ohms
Output at Full Scale: 2.0 mV/V nominal
Linearity: 0.10% FS
Hysteresis: 0.10% FS
Zero Balance: 1.0% FS
Operating Temperature: -54 to 121°C (-65 to 250°F)
Compensated Temperature: 21 to 76°C (70 to 170°F)
Thermal Effects
    Zero: 0.0036% FS/°C
     Span: 0.0036% FS/°C
Overload Capacity: 150% FS
Material:
    <100 in-lb: SS shafts, aluminum sensor
    ≥100 in-lb: Steel shaft and sensor
Maximum Shaft Speed: 5000 RPM
Electrical Connection: 4-pin twist lock connector (mating connector supplier); 10-pin twist lock connector with optional optical encoder (mating connector supplied)

Torque Range	0 to 200 in-lb, 0 to 3.125 in-lb, 0 to 6.25 in-lb, 0 to 12.5 in-lb, 0 to 31.25 in-lb, 0 to 62.5 in-lb, 0 to 100 in-lb, 0 to 1,000 in-lb, 0 to 2,000 in-lb, 0 to 500 in-lb
Weight Capacity	0 to 200 in-lb, 23 N-M, 50 in-oz, 0 to 3.125 in-lb, 0.35 N-M, 100 in-oz, 0 to 6.25 in-lb, 0.71 N-M, 200 in-oz, 0 to 12.5 in-lb, 1.41 N-M, 500 in-oz, 0 to 31.25 in-lb, 3.53 N-M, 1,000 in-oz, 0 to 62.5 in-lb, 7.06 N-M, 0 to 100 in-lb, 12 N-M, 0 to 1,000 in-lb, 113 N-M, 0 to 2,000 in-lb, 226 N-M, 0 to 500 in-lb, 56 N-M
Style	Shaft to Shaft
Electrical Output	2.0 mv/V
Output Signal	Voltage
Accuracy	±0.1%
Accuracy Class	0.1% to 0.25%
Connection Type	Twist lock connector
