Shear, Full Bridge Strain Gauges With Transducer Quality

Original price was: $196.96.Current price is: $99.99.

Precision Transducer Quality Gages
350 or 700 ohm Bridges
compensated for Steel or Aluminum
2 Half Bridge Pattern can be used a 1 Full Wheatstone Bridge

Grid Length

Grid Width

Connection Type

Resistance

STC number

Clear

SKU: SGT-2DD/350-SY11 Categories: Force & Strain Measurement, Strain Gauges, Torsion and Shear Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

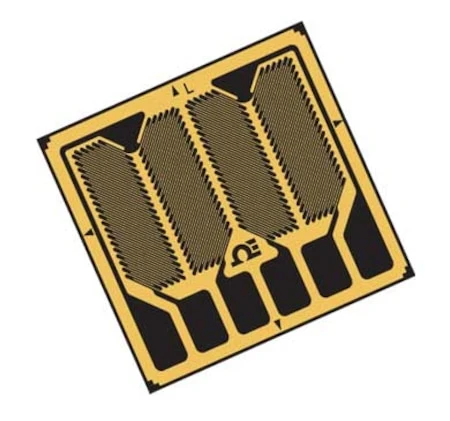

OMEGADYNE® offers full bridge transducer quality strain gages for shear and torsional strain applications. These strain gages can be used in transducer design for shear beam load cells, or they can also be used for reaction torque on a shaft.

SGT-2DD/350-SY** has 2 half bridges on one carrier piece. Each half bridge has a dual shear pattern, with opposite grids and a common lead/solder pad. SGT-3/700-FB** has 4 independent shear strain gages, with opposite grid angles, on one carrier, with separate leads/pads (electrically independent). Below we show one wiring example SGT-2DD/350-SY** used to measure a reaction torque on a shaft. The strain gages have been numbered, and the leads/solder pads labeled.

Grid Length	1.6 mm, 1.9 mm
Grid Width	1.7 mm, 3.4 mm
Connection Type	Ribbon Leads, Solder pads
Resistance	350 Ω, 700 Ω
STC number	ST, AL
Grid Style	Full bridge
Grid Length Range	0 to 3 mm
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	95
Maximum Strain	30,000 μm
Features	Transducer quality
