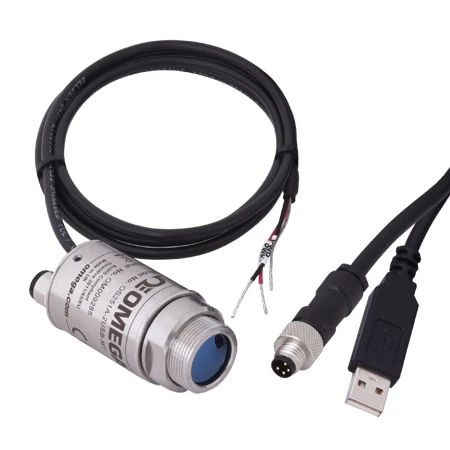

Smart-Micro IR T/C Adding Smart Linearization To The Smallest IR

Original price was: $307.00.Current price is: $99.99.

This product is no longer available please refer to OS-MINI-Series for possible replacement.
Non-Contact Temperature Measurement Thatâ€™s Plug and Play
No Impedance Leakage Current or Linearity Problems to Worry About
Sensor Head is Remote and without Air Purge can be Used in Ambient Temperatures to 100Â°C (212Â°F) and with Small Sized Air Purge Jacket can be Cooled to 350Â°F (177Â°C)
The Sensor Heads are the Smallest Sized in the Market (0.25″ Diameter)
Precision with Changes in Sensor Head Ambient
All Digital System

SKU: OS35RS-100C-V10-24V Categories: Fixed Infrared Temperature Sensors, Non-Contact Temperature Measurement Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The OS35RS Series is discontinued from 05/15/2018. Consider OS550A Sereis as a possible alternative or contact our Temperature Engineering department.
The smallest sized IR temperature sensor in the world now has brains. By combining the OS36-SM sensor head with the OS35 platform, precision in small places is now a reality. The OS35 processes the signal from the microIRt/c, linearizes, and gives an analog output (4 to 20 mA, 0 to 5V, 0 to 10V). Accuracy holds with changes in ambient from -45 to 100 °C, with no drifting. Four sensor heads with 1:2 and 4:1 optics, straight and side view mounting, built in air purge (cool to 120 °C), air purge jackets (cool to 175 °C), and mounting brackets are available.

Temperature Range Table (Table 1)

Temperature Code	Temperature Range
100ºC	0 to 100ºC
250ºC	0 to 250ºC
70ºC	-30 to 70ºC
500ºC (*)	0 to 500ºC
(*) This temperature range is only available with models of 4:1 FOV.

Output Options Table (Table 2)

Output Suffix	Output Type
MA	4 to 20 mA
V10 (**)	0 to 10V
V5	0 to 5V
RS2	RS232 communications port
(**) This output range is only available with 24V power supply.

Power Supply Table (Table 3)

Power Supply Suffix	Power
12V	12 Vdc power supply
24V	24 Vdc power supply

Process Temprature Range	0°C (32°F) to 100°C (212°F)
Field of View	21
Accuracy @ Ambient	±1% rdg or 1°C(1.8°F)
Operating Temprature range	0°C (32°F) to 70°C (158°F)
Laser Output	No
Built in Display	No
Emissivity	0.9
Cable Length	3 ft
Output	0 to 10 Vdc
Supply Voltage	12 to 24 Vdc
Spectral Response	5.5 to 20 microns
Response Time	650 ms
Communication Protocol	None
Intrisically Safe	No
Features	None
