Stainless Steel S-Beam Load Cells
Original price was: $350.00.$96.99Current price is: $96.99.
- Being replaced by our new and improved LC103B Series
- 5-Point NIST Traceable Calibration with
59K Shunt Data Included - All Stainless Steel for Harsh Industrial Applications
- 0.25% Interchangeable for Multiple Load Cell Applications
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The LC101 series has been replaced by the LC103B series. The new LC103B series has the same features and high accuracy but at a lower price point. Many ranges are in stock available for immediate shipment.

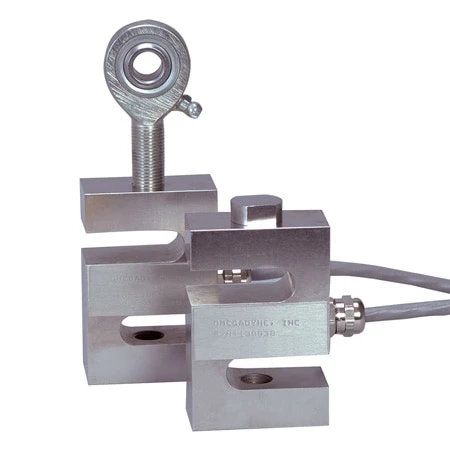

S-Beam load cells that receive tension or compression output readings. Applications include tank weighing hoppers suspended loads and truck scales. S-Beam load cells provide superior performance in an compact versatile package. Install using rod ends or load buttons for best performance.
The LC101 & LC111 are also available in metric configurations with ranges from 0-10 to 0-10 000 kgf and metric threads. Please see the LCM101 for complete details or contact our Pressure department for more information.
SPECIFICATIONS
Excitation: 10 Vdc 15 Vdc max
Output: 3 mV/V ±0.0075 mV/V
Linearity: ±0.03% FSO (0.1% 40 K)
Hysteresis: ±0.02% FSO (0.1% 40 K)
Repeatability: ±0.01% FSO (0.05% 40 K)
Zero Balance: ±1% FSO
Operating Temp Range: -40 to 93°C (-40 to 200°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.002% FSO/°C
   Span: 0.002% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10 ?
Output Resistance: 350 ±10 ?
Full Scale Deflection: 0.25 to 0.51 mm (0.010 to 0.020″)
Construction: 17-4 PH stainless steel
Electrical (LC101/LCM101): 4-Conductor Shielded Cable
   <100 kgf/250 lb: 9 m (30′) 24 AWG
   250 to 1000 kgf/250 to 2000 lb: 9 m (30′) 20 AWG
   ?1500 kgf/3000 lb: 4.5 m (15′) 20 AWG
Mating Connector (LC111/LCM111):
   ?100 kgf/200 lb: PT06F8-4S sold separately
   ?250 kgf/250 lb: PT06F10-6S sold separately
| Weight Capacity | 500 lbf, 100 lbf, 10,000 lbf, 150 lbf, 1,000 lbf, 200 lbf, 20,000 lbf, 25 lbf, 250 lbf, 25,000 lbf, 2,000 lbf, 30,000 lbf, 3,000 lbf, 40,000 lbf, 50 lbf, 5,000 lbf |
|---|---|
| Height | 3", 2.5", 4.3", 3.5", 5.5" |
| Width | 1", 0.5", 1.5", 2", 3" |
| Length | 2", 1.5", 3", 4", 2.5" |
| Connection Type | Cable, MIL-26482-I 8-4P, MIL-26482-I 10-6P |
| Cable Length | 30 ft, 15 ft, Not applicable |
| Measurement Units | lbf |
| Force direction | Tension |
| Linearity | ±0.03% |
| Electrical Output (nominal) | 3 mV/V |
