Sale!

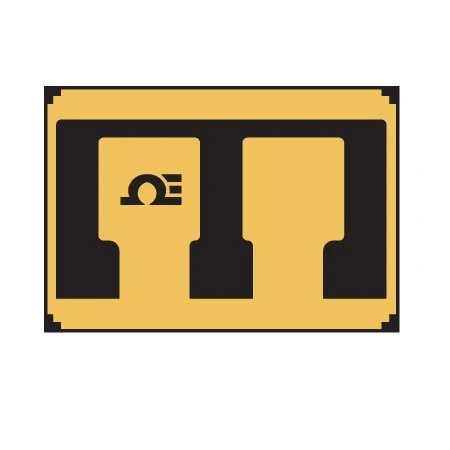

Strain Gauge Resistors For Balancing And Temperature Compensation
Original price was: $166.31.$98.99Current price is: $98.99.
- FAST IMMEDIATE DELIVERY ON LARGE ORDERS!
- Stock to 1-Week!
- Sold in Convenient 5 Packs
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
| SPECIFICATIONS | RES-C | RES-N |
| Foil Measuring Grid | Constantan foil 5 microns thick | Nickel foil 5 microns thick |
| Carrier | Polyimide | Polyimide |
| Substrate Thickness | 20 microns | 20 microns |
| Tolerance in Ω | ±1 Ω | ±1 Ω |
| Temp Coefficient of Resistance | —— | 0.6%/°C (0.34%/°F) |
| Temperature Range | -75 to 200°C (-100 to 392°F) | 0 to 100°C (32 to 212°F) |
| Resistance | 2 Ω, 5 Ω |
|---|---|
| Features | Constantan Foil resistor, Nickel Foil resistor |
| Grid length | 3.4 mm (0.134 in) |
| Grid Width | 6.3 mm (0.248 in) |
Be the first to review “Strain Gauge Resistors For Balancing And Temperature Compensation”
