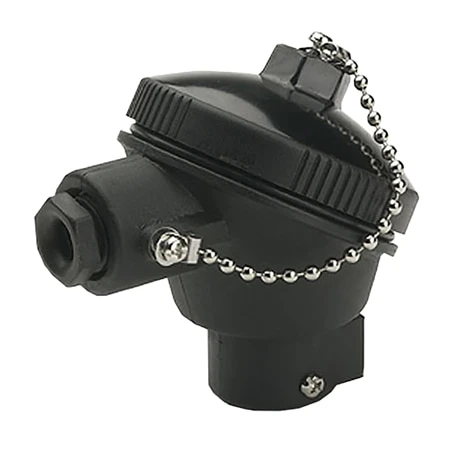

Thermocouple And RTD Protection Heads
Original price was: $39.31.$27.52Current price is: $27.52.
- NB1 – Cast Iron
- NB2 – Burnished Die Cast Aluminum
- NB4 – Miniature Aluminum
- NEPA & NEPB – Explosion Resistant
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
OMEGA offers a wide range of thermocouple heads from cast iron to Feraloy Iron Alloy.
| Material | Type | Model No. | Terminals | Wt. (oz) | Threaded Openings | Features | |
| Protection Tube Entry | Extension Wire Entry | ||||||
| Cast Iron | NB1 | NB1-0 NB1-2 NB1-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 14 gage wire | 22 23 24 | 1/2′ NPT | 1/2′ NPT | * Rugged construction * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use |
| Burnished Die Cast Aluminum | NB2 | NB2-0 NB2-2 NB2-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 14 gage wire | 5 6 6-1/2 | 1/2′ NPT Standard | 1/2′ NPT w/compression fitting for 1/8′ to 1/4’O.D. wire | * Small and Lightweight * Good corrosion resistance * Gasketed, weather resistant * Burnished finish * Safety chain on cover |
| Cast Aluminum Body and Cap | NEPA | NEPA-0 NEPA-2 NEPA-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 14 gage wire | 16-1/2 17-3/4 18-1/4 | 3/4′ NPT | 3/4′ NPT | * Explosion resistant head * Rated for: Class III Class I, Group C, D Class II, Groups E, F, G * Screw cover * Moisture and dust resistant * Safety Ideal for outdoor use * Safety Utilizes barrier strip connector (optional) |
| NEPB | NEPB-0 NEPB-2 NEPB-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 14 gage wire | 21-1/2 22-3/4 23-1/4 | 1/2′ NPT | 1/2′ NPT | ||
| Cast Iron | NSA | NSA-0 NSA-2 NSA-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 8 gage wire | 42 46 48 | 1/2′ NPT | 3/4′ NPT | * Rugged construction * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use * Standard OMEGA™ heavy duty head * Cover equipped with safety chain (readily removed without tools) |
| NSB | NSB-0 NSB-2 NSB-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 8 gage wire | 40 44 46 | 3/4′ NPT | 3/4′ NPT | ||
| NSC | NSC-0 NSC-2 NSC-4 | 0 = no terminal block 2 = single element 4 = duplex element max. 8 gage wire | 36 40 42 | 1′ NPT | 3/4′ NPT | ||
| Cast Iron with Aluminum Cap | NEP-T | NEP-T0 NEP-T2 NEP-T4 | 0 = no terminal block 2 = single element 4 = duplex element max. 14 gage wire | 75 76 76 | 1/2′ NPT | 1/2′ NPT | * Explosion resistant head * Rated for Class I, Group C, D Class II, Groups E, F, G Class III * Screw cover with inside thread * Moisture and dust resistant * Ideal for outdoor use * Utilizes barrier strip connector (optional) |
| Feraloy with Iron Alloy | HEP-TX | HEP-TX-0 HEP-TX-2 HEP-TX-4 HEP-TX-70 | 0 = no terminal block 2 = single element 4 = duplex element 70 = for mounting TX70 Transmitter max. 14 gage wire | 62 64 64 66 | 1′ NPT 3/4′ NPT | 1′ NPT 3/4′ NPT | * Explosion resistant head for 2-wire transmitter * Rated for Class I, Div 1&2, Groups C, D Class III Class II, Div 1 Groups E, F, G, Class III * Moisture and dust resistant * Ideal for outdoor use * Utilizes barrier strip connector (optional) |
Note: NEMA 4X rated Heads Available. Please consult our Technical Quotations Department.
| Material | Cast Iron, Feraloy with Iron Alloy, Burnished Die Cast Aluminum, Aluminum, Glass Reinforced Nylon, Cast Aluminum Body and Cap, Cast Iron with Aluminum Cap |
|---|---|
| Process Connection | 1/2" NPT, 1" NPT, 3/4" NPT, 1/2" NPT with compression fitting for 1/8 to 1/4 in OD wire, M16 x 1.5 with compression fitting, 1/2" NPT with compression fitting, 3/4" NPT, Not Applicable |
| Terminals | No terminal block, Single element, Duplex element, Not Applicable |
| Protection Tube Entry | 1/2" NPT, 1" NPT, 3/4" NPT, M10 x 1 works with 1/8 NPT, 3/4" NPT, Not Applicable |
