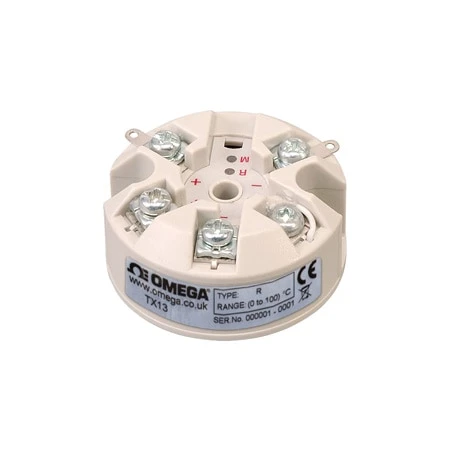

Thermocouple Input Temperature Transmitter W/ Pushbutton Config

Original price was: $125.64.Current price is: $87.95.

K, J, N, E, T, R, S Thermocouples and mV Inputs
Pushbutton Configuration
56 Preprogrammed Ranges Ready-to-Use
User Trim – Null Out Sensor Error

SKU: TX13 Categories: Head Mount Signal Conditioners, Signal Conditioners Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The TX13 in-head mounting thermocouple transmitter converts a thermocouple input over a configured range to a standard industrial (4 to 20 mA) transmission signal. A simple push button operation allows the user to select thermocouple type, burnout direction, select fixed ranges and trim 4 and 20 mA points. The in-head transmitter incorporates the latest digital technology to ensure accurate drift-free performance.

The default factory scaling is for a range of 0 to 1000°C and Type K thermocouple input, with up-scale burnout.

Specifications

**Accuracy @ 20°C**
Sensor	Range °C	Input Accuracy
K	-200 to 1370	±(0.5°C + 0.1% of F.S.)
J	-100 to 1200
E	-200 to 1000
N	-180 to 1300
T	-200 to 400
R	-10 to 1760	±(0.5°C + 0.1% of F.S.) over the range 800 to 1600
S	-10 to 1760	±(0.5°C + 0.1% of F.S.) over the range 800 to 1600
mV	-10 to 70mV	±0.02% of full scale

Isolation: Tested to 250 Vdc
Sensor Burnout: Either up or down scale output
Cold Junction:
    Range: -40 to 85°C
    Accuracy: ±0.5°C
    Tracking: ±0.05°C/°C
Stability:
    Offset: 0.1°C/°C
    Span: 0.05°C/°C

Output Type: 2 wire, 4 to 20 mA sink
Output Connection: Screw terminal
Maximum Output: 21.5 mA (in high burnout condition)
Minimum Output: 3.8 mA (in low burnout condition)
Accuracy: (mA out/2000) or 5 uA (whichever is the greater)
Loop Voltage Effect: 0.2 uA/V
Thermal Drift (from 20°C): ±1 uA/°C typical; ±1.5 uA max
Maximum Output Load: [(Vsupply-10)/20]KΩ (Example: 700Ω @ 24V)

Environmental
Ambient Operating Range: -40 to 85°C
Ambient Storage Temperature: -50 to 90°C
Ambient Humidity Range: 10 to 90% RH non condensing
Physical Dimensions: 43 mm Dia; 21 mm H
Weight: 31 g (encapsulated)

Update Time: 500 mS
Response Time: 1 second to 90% of final value
Start Up Time: Typically 5 seconds from power up
Warm-Up Time: 1 minute to full accuracy
Power Supply: 10 to 30 Vdc
