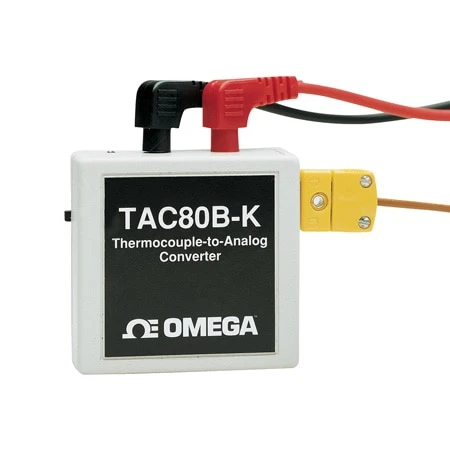

Thermocouple To Analog Converter, Battery Or AC Power
Original price was: $158.63.$97.99Current price is: $97.99.
- Linear 1 mV per Degree Output from Thermocouples
- °C/°F Switchable
- Battery or ac Powered
- Mates to Male and Female Standard Banana Plugs
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
The TAC80B temperature linearizer accepts the input signal from a thermocouple and outputs a linear 1 mV/degree analog signal for use with recorders and other instruments. TAC80B models operate using a 9V battery (included) and may be ac powered using the optional TAC80B-AC adaptor.
Model No.Input TypeRangeAccuracyTAC80B-JJ Iron-Constantan-4 to 1112°F
-20 to 600°C±5.4°F
±3.0°CTAC80B-KK CHROMEGA™-ALOMEGA™-4 to 1832°F
-20 to 1000°C±7.2°F
±4.0°CTAC80B-TT Copper-Constantan-4 to 572°F
-20 to 300°C±3.0°F
±1.6°C
| Number of Inputs | 1 |
|---|---|
| Input Type | Thermocouple |
| Input Ranges | -20 to 300°C (-4 to 572°F) |
| Output Type | 1 mV per Degree |
| Other Features | TAC80B-T |
