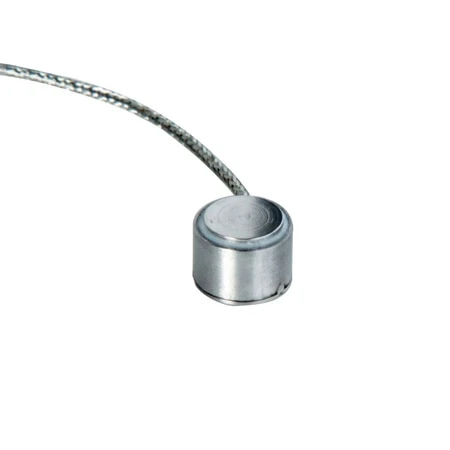

Top Hat Style, Miniature Compression Load Cell

Original price was: $304.00.Current price is: $98.99.

All Stainless Steel Construction
Built-in Load Button for Easy Installation
Rugged, Heavy Duty Design
5-Point Calibration with 90 kOhm Shunt Cal Data

Weight Capacity

Measurement Units

Height

Clear

SKU: LCM307-500KN Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Small in size but not in performance, the Series LC307 “Top Hat” load cell is designed for applications with minimum space and high capacity loads up to 100,000 lb. Rugged all stainless steel construction and high performance strain gages assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board in the load cell’s cable. This unit is designed to be mounted on a smooth, flat surface.

The LC307 is also available in metric configurations, with 0-1 to 0-500 kN ranges. Please see the LCM307 for complete details, or contact our Pressure department for more information..

SPECIFICATIONS
Excitation: 5 Vdc
Output: 1.75 mV/V nominal
Accuracy: 0.75% FS BFSL (includes linearity, hysteresis and repeatability)
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: ±0.018% rdg/°C
Zero: ±0.018% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350&ohm; minimum
Full Scale Deflection: 0.025 to 0.076 mm (0.001 to 0.003″)

Weight Capacity	500 kN, 100,000 lbf, 10,000 lbf, 1,000 lbf, 250 lbf, 2,000 lbf, 3,000 lbf, 500 lbf, 50,000 lbf, 5,000 lbf, 7,500 lbf, 10 kN, 1,000 N, 200 kN, 20 kN, 2 kN, 50 kN, 5 kN
Measurement Units	kN, lbf, N
OD	2", 0.88", 0.5", 1.75", 0.63"
Height	1.47", 1.63", 0.63", 0.38", 1.38", 0.6", 0.32", 1.23", 0.53", 0.55"
Force direction	Compression
Linearity	±0.75%
Electrical Output (nominal)	1.75 mV/V
Connection Type	Cable
Cable Length	5 ft
