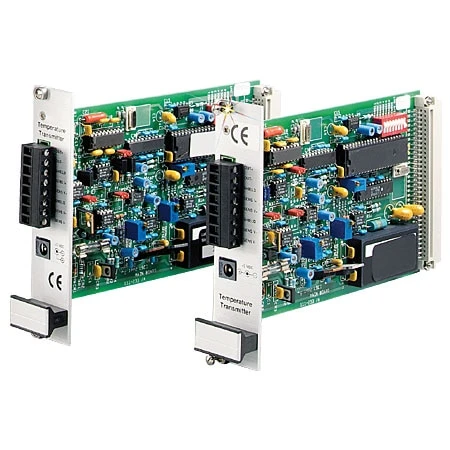

Transmitters For Use With CY670 Sensors And Platinum RTDs

Original price was: $300.00.Current price is: $95.99.

Models for Silicone Diode or Platinum RTD Elements
Accuracy ±0.07K at 4.2K Factory Calibration in Memory
Input Fully Isolated from Power Supply
Four Lead Measurement

SKU: CYTX231P-115 Categories: Accessories, Coolers Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

The CYTX231 temperature transmitters send linearized data to a remote location for a data acquisition system or a recorder using a 4-20 or 0-20mA signal. Standard Curve #10 chart shown in the T section is in memory for the silicon diode sensor and excitation of 10µA is provided. The CYTX231P operates like the CYTX231SD but uses a 100Ohm platinum RTD sensor. Excitation provided is 500µA and a DIN 437600 standard curve is provided in memory.

Sensor Type	Platinum RTD
Temperature Range	30 to 800 K
Supply Voltage	115 VAC
Number of Inputs	1
Output Type	4 to 20 mA, 0 to 20 mA, 0 to 10V
Size	100 x 160 x 30.5 mm (3.9 x 6.3 x 1.2 in)
