Sale!

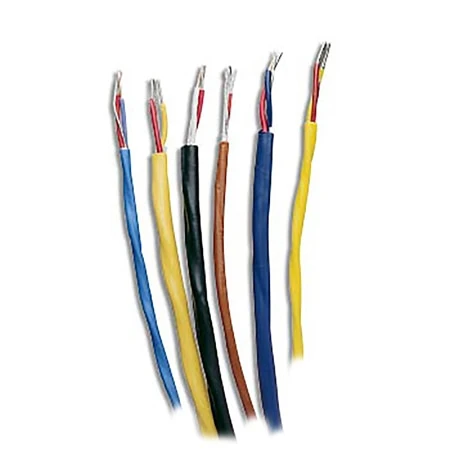

Twisted Shielded Thermocouple Duplex Extension Wire

Original price was: $348.18.Current price is: $97.99.

Maintains Electrical Ground from Probe Sheath to Instrument
Polyvinyl and PFA Insulations Available
Complements OMEGA Low Noise Thermocouple Probes and Connectors
Extension and Thermocouple Grades

Temperature range

Wire Gauge

Thermocouple Calibration Type

Cable Type

Conductor type

Conductor Insulation

Overall Insulation

Overbraiding Type

Cable Length

Special Limit of error

Color Code Standard

Clear

SKU: EXTT-K-20-TWSH-SLE-100 Categories: Extension Wires and Cables, Temperature Wire and Cable Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Available: Thermocouple Grade PFA Insulation(TT), Thermocouple Grade FEP Insulation(FF), Extension Grade Polyvinyl Insulation(EXPP), Extension Grade FEP Insulation(EXFF)

Thermocouple Grade PFA Insulation

AWG	Model Number	Nominal Size	Thermocouple Calibration
20	TT-J-20-TWSH	0.145	J
	TT-K-20-TWSH	0.145	K
	TT-T-20-TWSH	0.145	T
	TT-E-20-TWSH	0.145	E
20S*	TT-J-20S-TWSH	0.15	J
	TT-K-20S-TWSH	0.15	K
	TT-T-20S-TWSH	0.15	T
	TT-E-20S-TWSH	0.15	E
24	TT-J-24-TWSH	0.105	J
	TT-K-24-TWSH	0.105	K
	TT-T-24-TWSH	0.105	T
	TT-E-24-TWSH	0.105	E
24S*	TT-J-24S-TWSH	0.115	J
	TT-K-24S-TWSH	0.115	K
	TT-T-24S-TWSH	0.115	T
	TT-E-24S-TWSH	0.115	E

Thermocouple Grade FEP Insulation

AWG	Model Number	Nominal Size	Thermocouple Calibration
20	FF-J-20-TWSH	0.145	J
	FF-K-20-TWSH	0.145	K
	FF-T-20-TWSH	0.145	T
	FF-E-20-TWSH	0.145	E
20S*	FF-J-20S-TWSH	0.15	J
	FF-K-20S-TWSH	0.15	K
	FF-T-20S-TWSH	0.15	T
	FF-E-20S-TWSH	0.15	E
24	FF-J-24-TWSH	0.105	J
	FF-K-24-TWSH	0.105	K
	FF-T-24-TWSH	0.105	T
	FF-E-24-TWSH	0.105	E
24S*	FF-J-24S-TWSH	0.115	J
	FF-K-24S-TWSH	0.115	K
	FF-T-24S-TWSH	0.115	T
	FF-E-24S-TWSH	0.115	E

Extension Grade Polyvinyl Insulation

AWG	Model Number	Nominal Size	Thermocouple Calibration
16	EXPP-J-16-TWSH	0.25	J
	EXPP-K-16-TWSH	0.25	K
	EXPP-T-16-TWSH	0.25	T
	EXPP-E-16-TWSH	0.25	E
16S*	EXPP-J-16S-TWSH	0.27	J
	EXPP-K-16S-TWSH	0.27	K
	EXPP-T-16S-TWSH	0.27	T
	EXPP-E-16S-TWSH	0.27	E
20	EXPP-J-20-TWSH	0.2	J
	EXPP-K-20-TWSH	0.2	K
	EXPP-T-20-TWSH	0.2	T
	EXPP-E-20-TWSH	0.2	E
20S*	EXPP-J-20S-TWSH	0.215	J
	EXPP-K-20S-TWSH	0.215	K
	EXPP-T-20S-TWSH	0.215	T
	EXPP-E-20S-TWSH	0.215	E

Extension Grade FEP Insulation

AWG	Model Number	Nominal Size	Thermocouple Calibration
16	EXFF-J-16-TWSH	0.17	J
	EXFF-K-16-TWSH	0.17	K
	EXFF-T-16-TWSH	0.17	T
	EXFF-E-16-TWSH	0.17	E
16S*	EXFF-J-16S-TWSH	0.18	J
	EXFF-K-16S-TWSH	0.18	K
	EXFF-T-16S-TWSH	0.18	T
	EXFF-E-16S-TWSH	0.18	E
20	EXFF-J-20-TWSH	0.15	J
	EXFF-K-20-TWSH	0.15	K
	EXFF-T-20-TWSH	0.15	T
	EXFF-E-20-TWSH	0.15	E
20S*	EXFF-J-20S-TWSH	0.15	J
	EXFF-K-20S-TWSH	0.15	K
	EXFF-T-20S-TWSH	0.15	T
	EXFF-E-20S-TWSH	0.15	E

Temperature range	0 to 200°C (32 to 400°F), 0° to 100°C (32° to 212°F), 0 to 200°C (32 to 392°F), 0° to 105°C (32 to 221°F), -24 to 105°C (-11 to 221°F), -24° to 105°C (-11 to 221°F), 0 to 105°C (32 to 221°F), 0 to 100°C (32 to 212°F), -24° to 100°C (-11 to 212°F), 0 to 260°C (32 to 500°F), -200 to 260°C (-328 to 500°F), -25 to 200°C (-13 to 400°F), -60 to 100°C (-75 to 212°F), 0 to 260°C (32 to 450°F), -40 to 260°C (-40 to 500°F), -200 to 200°C (-328 to 400°F), -40 to 200°C (-40 to 392°F)
Wire Gauge	20 AWG, 16 AWG, 24 AWG
Thermocouple Calibration Type	K, B, E, J, R/S, T, N
Cable Type	Extension wire Twisted Shielded, Thermocouple Wire Twisted Shielded
Conductor type	Solid, Stranded
Conductor Insulation	PFA, FEP, Polyvinyl (PVC)
Overall Insulation	PFA, FEP, Polyvinyl (PVC)
Overbraiding Type	None, Stainless Steel Overbraid, Tinned Copper Overbraid, Inconel Overbraid
Cable Length	100 ft, 50 ft, 1000 ft, 200 ft, 25 ft, 500 ft, 7.5 m, 150 m, 300 m, 30 m, 60 m, 100 m, 15 m
Special Limit of error	Yes, No
Color Code Standard	ANSI (Standard), IEC
Category	Thermocouple
Number of Pairs	None
Additional Feature	None
