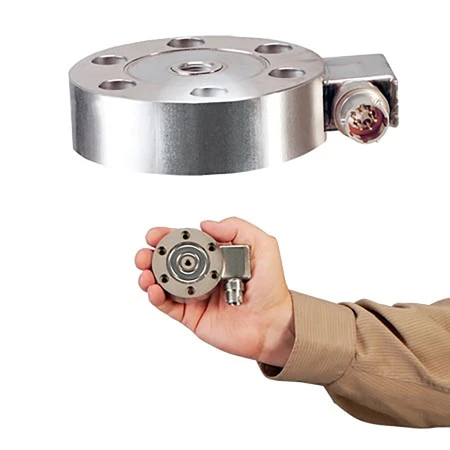

Ultra Low Profile, Tension And Compression Load Cells

Original price was: $361.00.Current price is: $99.99.

5 Point NIST Traceable Calibration, Certificate Supplied
0.25% Interchangeability for Scale Applications
All Stainless Steel Construction
Rugged Heavy Duty Design

Weight Capacity

Linearity

Electrical Output (nominal)

Through hole (ID)/ Threaded hole dimension

Height

Connection Type

Clear

SKU: LCHD-5K Categories: Force & Strain Measurement, Load Cells Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

Low profile load cells are basically compression and tension/compression load cells. Mounting holes and female threads provide easy installation. Used frequently in weighing research and in-line force monitoring.

The LCHD is also available in metric configurations, with ranges from 0-2.5 to 0-10,000 kgf and metric threads. Please see the LCMHD for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output (FSO):
   25 lb/10 kgf: 2 mV/V ±0.25%
   50 lb/20 kgf: 3 mV/V ±0.25%
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Linearity:
   25 lb/10 kgf: ±0.20% FSO
   50 lb/20 kgf: ±0.10% FSO
Hysteresis:
   25 lb/10 kgf: ±0.10% FSO
   50 lb/20 kgf: ±0.08% FSO
Repeatability:
   25 lb/10 kgf: ±0.1% FSO
   50 lb/20 kgf: ±0.03% FSO
Zero Balance: ±1% of FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: 0.0036% FSO/°C
   Span: 0.0036% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Input Resistance: 350 ±10
Output Resistance: 350 ±10
FS Deflection: 0.025 to 0.076 mm (0.001 to 0.003″) typical
Construction: 17-4 PH stainless steel
Electrical:
   5000 lb/2000 kgf: DT02H-10-6P
   >5000 lb/2500 kgf: MS3102E-14S-6P (or equiv.)
Mating Connector (Included):
   5000 lb/2000 kgf: PT06F10-6S
   >5000 lb/2500 kgf: MS3102E-14S-6S (or equiv.)

Compatible Meters: DP41-S, DP25-S, LDP63000-S

POPULAR OPTIONS(add as suffix)
-5T ±5 Vdc Output (0 to 5 Vdc in either direction), add $175, ranges 5000 lb
-DUAL Dual Bridge, $250 ranges 5000 lb; $350 ranges >5000 lb
-TC1 Extended Temperature Range -50 to 200°F, $50
-TC2 Extended Temperature Range -50 to 325°F, $125
-OL Overload Stops – Consult factory

Weight Capacity	5,000 lbf, 10 lbf, 100 lbf, 100,000 lbf, 10,000 lbf, 150,000 lbf, 15,000 lbf, 1,000 lbf, 200,000 lbf, 20,000 lbf, 25 lbf, 250 lbf, 2,000 lbf, 300,000 lbf, 30,000 lbf, 3,000 lbf, 4,000 lbf, 5 lbf, 50 lbf, 500 lbf, 50,000 lbf, 75,000 lbf, 7,500 lbf
Linearity	±0.1%, ±0.2%
Electrical Output (nominal)	3 mV/V, 2 mV/V
OD	3.5", 2.5", 3", 9", 5.5", 11", 6", 14"
Through hole (ID)/ Threaded hole dimension	1⁄2-20 UNF, 1/4-28 UNF, 3⁄8-24 UNF, 2-12 UN, 1-14 UNS, 2 1⁄2–12 UN, 1 1⁄2-12 UNF, 3 1⁄2–8 UN
Height	1", 0.8", 2.5", 1.8", 3", 4.25"
Connection Type	MIL-26482-I 10-6P, MIL-5015-I 14S-6P
Measurement Units	lbf
Force direction	Tension/Compression
