Ultra-Miniature Thermocouple Or RTD Temperature Transmitters

Original price was: $118.91.Current price is: $83.24.

±0.1% FS Accuracy
4 to 20 mA DC Output
Only 35.6 mm (1.4′) Diameter
Upscale Break Protection

Input Type

Input Ranges

Other Features

Clear

SKU: TX93A-E3 Categories: Head Mount Signal Conditioners, Signal Conditioners Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

TX93A and TX94A Series are discontinued. As an upgrade substitute, please check out the new TXUN temperature transmitter for details.

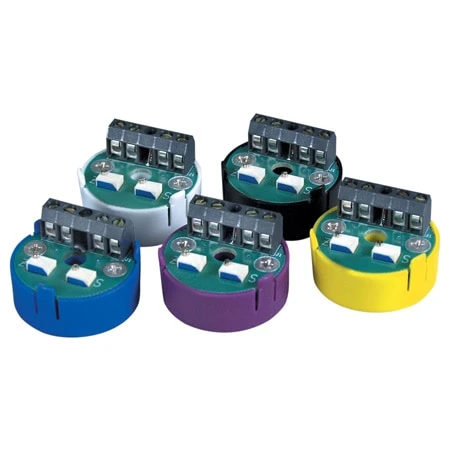

OMEGA™ ultra-miniature temperature transmitters convert millivolt inputs from thermocouples or resistance from RTDs into 4 to 20 mA outputs. Transmitters are available in color-coded enclosures covering the four most popular thermocouple types (J, K, T, and E) as well as three-wire 100 Ω platinum RTDs. Featuring state-of-the-art integrated circuits and electronic design, these ultra-compact transmitters have a diameter of only 35.6 mm (1.40″) and are designed to fit inside many compact thermowell protection heads, such as the OMEGA™ NB2. Omega also provides complete thermocouple and RTD assemblies.
TX93A and TX94A transmitters can eliminate long runs of costly field wiring in a variety of applications. A stable 4 to 20 mA output signal is produced proportional to the transmitter’s specific input type and calibrated temperature range (see Range Code table, right). Adjustability of ±25% for zero and span is provided to facilitate some rangeability. The transmitted signal eliminates noise pickup, voltage drops, and multiple cold junction errors, and it requires only a twisted pair of copper wires for loop connections. All models and ranges of these ultra-miniature transmitters are available with fully epoxy-potted electronics (specify “-P” option), which give ultimate protection in extreme environments.

Input Type	Thermocouple, RTD
Input Ranges	-18 to 149°C (0 to 300°F), -18 to 399°C (0 to 750°F), -18 to 260°C (0 to 500°F), -18 to 538°C (0 to 1000°F)
Other Features	TX93A-E3, TX93A-E5, TX93A-J5-P, TX93A-K5, TX93A-K5-P, TX93A-T3-P, TX93A-T4, TX93A-T5, TX94A-3-P, TX94A-4-P, TX94A-6-P
Number of Inputs	1
Output Type	4 to 20 mA
