Uniaxial, Half Bridge Strain Gauges With Transducer Quality

Original price was: $68.55.Current price is: $47.99.

Available with Ribbon Leads or Solder Pads
Temperature Characteristics Matched to Steel or Aluminum
Dual Linear Half-Bridge for Double Bend Transducer Applications
Custom Gages Available

Grid Length

Grid Width

Connection Type

Resistance

STC number

Clear

SKU: SGT-1LH/350-TY11 Categories: Dual Parallel Strain Gauges, Force & Strain Measurement, Strain Gauges Tag: Omega Engineering

Hassle-Free Payments
Online assistance, always at your service.
Your needs, our top priority.
Safe Payments, Happy Customers

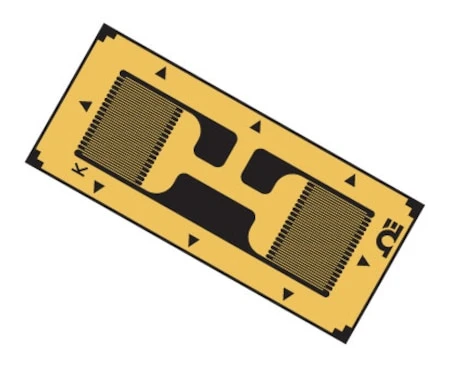

OMEGADYNE® offers transducer quality strain gages in dual linear patterns in a half-bridge design with a common tab. These strain gages might be used for transducer design for beams that have a contraflexure point. Defined as a point in a structure where bending occurs in opposite directions. A transducer may also be described as a reversed bending beam. The grids are linear, both in the same direction, and are typically used for bending strain applications.

Three styles are available:
Standard: SGT-1LH/350-TY**, with grid centerline to centerline spacing of 5.46 mm (0.215″)
Wide Grid: SGT-1LH/1000-TY**, with grid centerline to centerline spacing of 5.46 mm (0.215″)
Large: SGT-2LH/350-TY**, with grid centerline to centerline spacing of 10.50 mm (0.413″)

Grid Length	1.5 mm, 1.6 mm
Grid Width	2.5 mm, 4.8 mm, 2.3 mm
Connection Type	Ribbon Leads, Solder pads
Resistance	350 Ω, 1,000 Ω
STC number	ST, AL
Grid Style	Dual Grid Linear
Grid Length Range	0 to 3 mm
Temperature Range Units	°C
Temperature Range Min	-75
Temperature Range Max	95
Maximum Strain	30,000 μm
Features	Transducer quality
