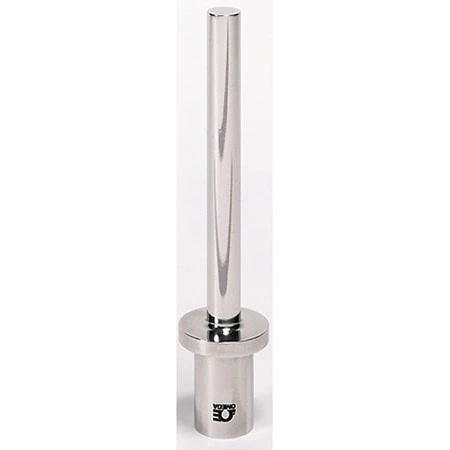

Van Stone Thermowells For 0.260″ & 0.385″ Bore Diameters
Original price was: $246.20.$98.99Current price is: $98.99.
- Available in Carbon Steel and Stainless Steel
- Standard Insertion Lengths from 2 to 22 Inches
- Hassle-Free Payments
- Online assistance, always at your service.
- Your needs, our top priority.
- Safe Payments, Happy Customers
Application:
260V series fits standard length 1/4′ diameter elements. 385V series fits standard length 3/8′ diameter elements.
Connection Size:
Standard wells fit 1′ lap joint flanges. Other sizes also available. Prices below are for 1′ Van Stone Wells. Consult factory for prices on other sizes.
Materials:
Carbon Steel (C-1018), A.I.S.I. 304, A.I.S.I. 316 and Monel are standard. Other materials are available.
Backing Flange:
When desired, a carbon steel lap joint flange can be supplied with these wells. When ordering, specify flange pressure.
Series 260V and 385V
All dimensions in inches.
* NPSM internal pipe thread will accept both NPT and NPS male threads.
| Model No. | Element Length A | Insertion Length U | Shank Diameter Q | Bore Diameter Q |
| 1-260V-U 2 -U 4 -U 7 -U10 -U13 -U16 -U22 | 4 6 9 12 15 18 24 | 2 4 7 10 13 16 22 | 3/4 3/4 3/4 3/4 3/4 3/4 3/4 | .260 .260 .260 .260 .260 .260 .260 |
| 1-385V-U 2 -U 4 -U 7 -U10 -U13 -U16 -U22 | 4 6 9 12 15 18 24 | 2 4 7 10 13 16 22 | 7/8 7/8 7/8 7/8 7/8 7/8 7/8 | .385 .385 .385 .385 .385 .385 .385 |
Maximum Fluid Velocity—feet per second
| Well Type | Material | Insertion Length – “U” | |||||||
| 2 | 4 | 7 | 10 | 13 | 16 | 22 | |||
| 260V and 260F | Carbon Steel | 404 (129) | 184 (71.2) | 67.0 (42.7) | 34 | 20.6 | 13.7 | 7.4 | |
| A.I.S.I. 304 & 316 | 430 (179) | 192 (99.3) | 69.7 (59.6) | 35.4 | 21.5 | 14.3 | 7.7 | ||
| Monel | 350 (143) | 168 (79.8) | 61 (47.7) | 31 | 18.8 | 12.5 | 6.7 | ||
| 385V and 385F | Carbon Steel | 410 (152) | 248 (84.3) | 91.3 (50.6) | 45.7 | 27.6 | 18.5 | 10 | |
| A.I.S.I. 304 & 316 | 444 (211) | 258 (117) | 95.2 (70.3) | 47.6 | 28.8 | 19.3 | 10.4 | ||
| Monel | 338 (168) | 226 (93.3) | 83.3 (56.0) | 41.6 | 25.2 | 16.9 | 9.1 | ||
| Where single values appear in the velocity tables, these may be considered safe for water, steam, air or gas. In the shorter insertion lengths, consideration is given to the velocity pressure effect of water flowing at higher velocities. The values in parentheses, therefore, represent safe values for water flow, while the unbracketed values may be used for steam, air, gas and similar density fluids. |
| Material | 304 Stainless Steel, 316 Stainless Steel |
|---|---|
| Shank Diameter | 3/4 in, 7/8 in |
| Insertion Length | 10 in, 13 in, 16 in, 22 in, 2 in, 4 in, 7 in |
| Bore Diameter | 0.260 in, 0.385 in |
| Stem length/Probe Length | 12 in, 15 in, 18 in, 24 in, 4 in, 6 in, 9 in |
| External Thread | Not Applicable |
| Pipe Size | 1 in |
| Flange Size | Not Applicable |
| Shank Style | Straight |
| Internal Thread | 1/2 in NPSM |
| Pressure Rating | Not Applicable |
| Well Type | Van Stone |
| Features | Not Applicable |
